How to Connect Solar Panel Without Battery: A Safe Guide
Learn safe, practical methods to power low-draw devices directly from a solar panel without a battery. This guide covers regulation, protection, and safer alternatives for batteryless solar setups.
How to connect solar panel without battery safely means powering a load directly from the panel through a regulator or DC-DC converter, not by connecting raw panels to appliances. This approach avoids energy storage and is only suitable for low-draw devices. You'll need proper sizing, protection, and clear safety steps to minimize risk.
Overview and safety considerations
Connecting a solar panel directly to a load without storage is a topic many homeowners encounter when they want a minimal, batteryless setup for small, steady loads such as a lantern, a USB device, or a tiny DC motor. While the idea sounds simple, the reality is that solar panels produce varying voltages depending on sunlight, temperature, and load. Without a battery as a buffer, voltage can surge or collapse, potentially damaging both the panel and the device. According to Solar Panel FAQ, safety and proper sizing are essential when attempting to connect a solar panel without a battery. This guide from Solar Panel FAQ Team emphasizes understanding the electrical relationship between source, regulator, and load to minimize risk while achieving a practical outcome. The keyword how to connect solar panel without battery anchors the discussion, but every setup relies on appropriate regulation and protection rather than direct panel-to-load connections.
The goal is to power a device within the panel’s safe operating window, keeping in mind that batteryless operation is best reserved for well-controlled environments and modest power demands. In many home installations, a battery and charge controller provide stability and safety, but there are legitimate, carefully designed batteryless paths for specific use cases. Read on to explore options, safety steps, and safer alternatives that respect electrical codes and best practices.
Quick intro to the batteryless concept and why it matters
When you remove the buffer of a battery, the system becomes more sensitive to changes in sunlight and load. The panel voltage can spike when the sun is strong or drop when clouds pass by, which might trigger overvoltage or under-voltage conditions for your load. To navigate this, you can use regulation devices that limit current and voltage to safe levels. The Solar Panel FAQ team notes that any batteryless method should incorporate protection elements, predictable load matching, and careful monitoring. Even though you might only be powering a small, low-draw device, you should still plan for protection against shorts, reverse polarity, and transient spikes.
Why a regulator or DC-DC converter matters here
A regulator or DC-DC converter smooths the panel’s fluctuating output into a stable DC voltage suitable for your device. In batteryless setups, the regulator acts as a gatekeeper: it limits voltage, caps current, and helps prevent rapid fluctuations that could damage sensitive electronics. The regulator’s efficiency and its ability to handle the panel’s current determine whether the approach is viable for your load. This is why selecting the right regulator is a pivotal decision in any batteryless plan.
Realistic use cases for batteryless operation
Small, always-on devices with low current draw are the most realistic candidates for a batteryless connection. For example, a USB-powered LED array, a tiny sensor, or a low-wattage fan may operate reliably when paired with a regulator and a controlled load. In contrast, high-demand appliances or devices with startup surges are poor matches for a batteryless approach. If you need more power or longer run-time, a storage solution (battery or supercapacitor) is typically a safer choice.
Safety-first mindset and local codes
Before you begin, check your local electrical codes and ensure any retrofit complies with safety standards. Batteryless configurations can still pose hazards such as arc faults, electrical shock, or fire if misapplied. Always design for safe enclosure, correct wire sizing, proper insulation, and robust protection devices. Solar Panel FAQ stresses that safety is not optional, and well-documented plans help prevent avoidable problems when sunlight conditions vary throughout the day.
What you’ll learn in this guide
This article walks you through the concepts, the safe methods, and practical steps for batteryless solar connections. You’ll learn how to size a regulator, select protective components, wire the system, test outputs safely, and assess when to switch to a storage-based approach. By the end, you should understand both the constraints and the safe options for batteryless operation, so you can make an informed choice for your home.
Important note on expectations
Batteryless operation is not universally practical. For many homeowners, the most reliable and code-compliant approach remains a solar panel with a battery and a controller. This guide aims to provide a structured, safety-focused pathway for a controlled, low-demand batteryless setup when it is appropriate. It also highlights safe alternatives that can meet the same goals with greater robustness and safety.
Tools & Materials
- Solar panel (rated for your load)(Ensure the panel’s open-circuit voltage and current align with your regulator's input limits.)
- Regulator or DC-DC converter with current limiting(Prefer models with short-circuit protection and overvoltage protection.)
- Blocking/Schottky diode for reverse current protection(Place on the panel output to prevent backfeeding when load is removed.)
- Fuses or a circuit breaker(Protect the wiring and devices from overcurrent.)
- Appropriate wiring gauge (PVC insulated)(Match the wire to the expected current to minimize voltage drop.)
- Multimeter or DC load tester(Use to verify voltage, current, and regulator performance.)
- Weatherproof enclosure or junction box(Protects sensitive components in outdoor installations.)
- Insulation tape and shrink tubing(Secure and insulate connections.)
- Personal protective equipment (gloves, safety glasses)(Basic safety for handling electrical components.)
- Small capacitors or an ultra-capacitor bank (optional)(Some setups use capacitors to smooth brief surges, not a substitute for a battery.)

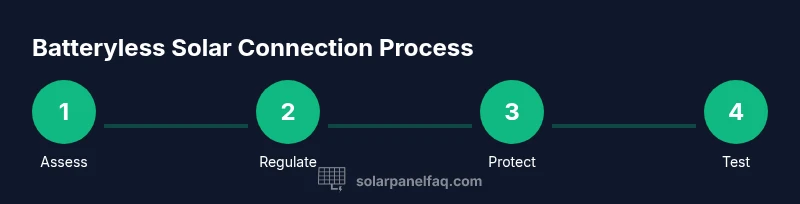

Steps
Estimated time: 60-90 minutes
- 1
Assess load and panel specs
Identify the maximum current and voltage your device requires and compare those values to the panel’s nominal output under typical sunlight. This alignment determines whether batteryless operation is feasible. Without storage, you must match the load to the regulator’s safe operating window.
Tip: Document the device voltage rating and expected current draw for reference during all steps. - 2
Choose a regulation strategy
Select a regulator or DC-DC converter that offers current limiting and overvoltage protection. Avoid direct wiring of the panel to the load; the regulator buffers fluctuations and protects the device.
Tip: Prefer a converter with auto-recovery and protection features for reliability. - 3
Assemble protective components
Place a blocking diode at the panel output and fuse or disconnect switch in series with the load. Enclose sensitive circuitry in a weatherproof box and route wires through grommets.
Tip: Double-check polarity before powering any part of the circuit. - 4
Wire the panel, regulator, and load
Connect the panel to the regulator input, include the diode in the correct orientation, then connect the regulator output to the load. Keep returns/ground tied to a common node where appropriate.
Tip: Keep wiring neat and away from moisture-prone areas; use zip ties and clamps. - 5
Perform a controlled test
With a safe, adjustable dummy load in place, expose the system to indirect sunlight and observe regulator behavior. Verify that voltage and current stay within safe limits for the load.
Tip: Start with the lightest load and gradually increase to ensure stable operation. - 6
Evaluate performance and decide on next steps
If voltage sags or spikes occur, halt the test and reassess panel sizing, regulator capacity, or the need for a storage option. If the load operates reliably, monitor over several sun cycles.
Tip: If uncertain, consult a licensed electrician or solar installer for validation.
Frequently Asked Questions
Is it safe to run appliances directly from a solar panel without a battery?
Directly running appliances from a panel is not generally recommended. A regulator or DC-DC converter helps manage voltage and current, reducing risk to devices and the panel. This approach is best for small, controlled loads under clear, safe conditions.
Direct panel-to-load power without a buffer is risky for most homes; use a regulator to control voltage and current and keep the load small.
What devices are best suited for batteryless solar connections?
Batteryless connections work best for very low-draw devices with stable operating voltages, such as tiny sensors or LED indicators. Heavier or variable loads are usually better served by a stored energy solution.
Tiny devices with low draw work best. For bigger loads, consider storage.
Do I still need a charge controller or regulator for a batteryless setup?
Yes. A regulator or DC-DC converter is essential to keep the output within safe limits for the device and to buffer the panel’s variable output. It reduces risk of overvoltage and protects both the panel and the load.
A regulator is essential to control the panel’s variable output and protect your device.
Can a capacitor replace a battery in this setup?
Capacitors can smooth brief voltage fluctuations but are not a substitute for a battery. They don’t store usable energy for extended periods and have limited buffering capacity for continuous loads.
Capacitors smooth spikes but don’t replace a battery for energy storage.
What happens if voltage spikes occur in a batteryless system?
Voltage spikes can damage the regulator and the connected device. Proper protection, including fuses and overvoltage protection, helps mitigate this risk. Always test under realistic light conditions.
Spikes can damage components; use protection and test under real-world conditions.
Is there a universal safe voltage for batteryless setups?
There is no one-size-fits-all voltage. It depends on your device’s rated voltage and current, along with the regulator’s capabilities. Always design around your specific equipment’s specs and test carefully.
There isn’t a universal voltage; tailor your setup to your device and regulator specs.
Watch Video
Top Takeaways
- Understand batteryless basics before wiring.
- Regulation and protection are essential for safety.
- Match panel output to the load to avoid surges.
- Consider safer alternatives when in doubt.
- Always test with a safe, adjustable load.
