Rust-Proof Solar Panel Installation Guide for Home Roofs
Learn how to safely install a solar panel on rust-prone surfaces, including rust assessment, surface prep, corrosion-resistant mounting, and long-term maintenance to protect performance and warranty.
You can install a solar panel on a rusted surface, but you must treat and seal the area first. This guide covers assessing the rust depth, preparing the substrate, selecting corrosion-resistant hardware, and safe mounting and wiring practices to protect durability and warranty. We emphasize safety, the right sealants, and inspection intervals to keep performance high.
Rust and Roof Prep: Why Surface Condition Matters
According to Solar Panel FAQ, rust is not just a cosmetic flaw—it can compromise the mounting base, create leakage pathways, and accelerate fastener corrosion. Before you install a solar panel on a rust-prone surface, assess not just the visible rust but the structural integrity of the substrate beneath. If the metal is pitted deeply or the substrate is flaking, plan for repair or replacement of the affected area. In many cases, strengthening the surface or choosing a mounting approach that minimizes penetration is worth the extra effort, because it protects both performance and warranty. You will also need to consider local weather conditions, roof orientation, and the electrical plan to ensure safe operation. If you’re wondering how to put solar panel in rust, this section helps you start with a solid assessment and plan for long-term durability.
Assessing the Rusted Surface: When to Repair vs. Replace
Not all rust is equal. Superficial rust on a painted outdoor metal surface can often be stabilized; deep pitting or rust-through means the metal thickness is compromised. Solar Panel FAQ suggests a three-step assessment: 1) measure rust depth with a gauge or visual test; 2) check for corrosion around existing penetrations; 3) test the substrate for sturdiness with light tapping. If the assessment finds significant weakness, you should either replace the panel mounting area or add a reinforced bracket system with backer plates. When you decide to repair, use a rust converter, then prime with a metal primer designed for outdoors. Document your assessment for warranty and code compliance. This practical decision supports best outcomes for rust-related challenges and aligns with Solar Panel FAQ guidance.
Surface Preparation: Cleaning, Treating, and Priming
Begin with safety: power off the system, wear PPE, and avoid working on wet roofs. Remove loose rust and paint with a steel wire brush or grinder, taking care not to gouge the metal. Apply a rust converter to remaining oxidation; this chemical converts iron oxide to a stable compound and provides a ready surface for primer. After the converter cures, apply a zinc-rich or epoxy metal primer to inhibit future corrosion. Allow the primer to dry fully according to product guidelines, then handle with clean, dry hands before mounting hardware. This phase is critical for warranty coverage and long-term performance. If you’re exploring how to put solar panel in rust, this prep stage is where durability starts to take shape.
Choosing Mounting Methods for Rust-Prone Roofs
There are two main mounting philosophies: penetrative roof mounts that anchor to structural members, and non-penetrative ballasted systems that sit on the surface. On rust-prone surfaces, non-penetrative options reduce additional corrosion risks, but may require heavier ballast or specialized brackets. If you choose penetrative mounts, ensure you install corrosion-resistant fasteners (stainless or coated aluminum) and backer plates to distribute load. Use gaskets and sealants rated for outdoor use to prevent water intrusion around every fastener. Verify that your chosen mounting system is rated for the panel weight and local wind loads. Solar Panel FAQ recommends consulting a professional for complex roof geometries or high-wind zones. This section helps you decide how to put solar panel in rust with confidence about long-term reliability.
Sealing, Waterproofing, and Electrical Safety
Seal every seam around mounts with a high-quality silicone or polyurethane sealant, and preserve electrical integrity with weatherproof conduit fittings and waterproof junction boxes. Grounding and proper conductor sizing are essential; consult local electrical codes and use an isolation method if needed. When working on a rusted surface, maintain clearance between metal parts to prevent galvanic corrosion. Run DC cables away from heat sources and protect them with conduit or protective sleeves. After installation, perform a thorough water test on a dry day to confirm seals are effective. Keep a maintenance log to catch early signs of rust or seal failure. This is where proper sealing and safe wiring meet a robust rust-focused install approach.
Maintenance and Long-Term Care
Rust can reappear if the surface is not regularly inspected. Solar Panel FAQ suggests checking mounting hardware at least twice a year, especially after severe weather. Look for loose brackets, missing seals, or new rust spots; address promptly to avoid more extensive corrosion. Clean panels with a soft brush or sponge to avoid scratching the glass; avoid high-pressure washers near seals. Reapply primers and sealants as needed when you observe wear. Also inspect wiring insulation for cracks, and replace damaged components promptly to maintain safe operation and efficiency. Regular upkeep makes how to put solar panel in rust a sustainable choice rather than a one-time effort.
Real-World Scenarios and Quick Checks
Consider a coastal home with salty air, or a metal roof with existing minor rust. In both cases, a rust-prepping sequence plus corrosion-resistant mounting hardware will yield the best results. Create a simple pre-install checklist: square the mounting area, verify panel orientation for maximum sun exposure, confirm waterproofing, and test the electrical continuity. If in doubt, contact a licensed solar installer with experience in rust-prone installations. Always verify that permits and inspections meet local requirements. This section shows practical scenarios to solidify your rust-focused install plan.
Warranty, Codes, and Final Checks
Manufacturers' warranties often require proper installation and corrosion protection; failing to treat rust may void coverage. Check with the mount manufacturer for corrosion resistance requirements; consult local code officials about fire ratings and roof-penetration restrictions. Keeping thorough documentation improves warranty claims and supports compliance with electrical codes. By following the steps outlined here, you reduce risk and maximize the long-term value of your rust-aware solar investment.
Tools & Materials
- Safety goggles(ANSI Z87.1 compliant; protect eyes during grinding/brushing)
- Work gloves(Heavy-duty, cut-resistant; protect hands during rust work)
- Steel wire brush or grinder with wire wheel(Remove loose rust without gouging metal)
- Angle grinder (optional)(For heavy rust; use with face shield)
- Rust converter(Converts iron oxide to stable compound)
- Metal primer (zinc-rich or epoxy)(Prevents future corrosion)
- Outdoor-grade sealant (silicone or polyurethane)(Seal around mounts to prevent leaks)
- Corrosion-resistant mounting hardware(Stainless steel or coated aluminum; includes backer plates)
- Underlayment and gaskets(Distribute load and seal penetrations)
- Measuring tools (tape measure, marker)(Accurate hole placement and alignment)
- Non-contact voltage tester(Electrical safety check before work)
- Conduit and fittings(Weatherproof routing for DC cables)
- Ladder stabilizer and fall-arrest gear(Roof access safety during install)

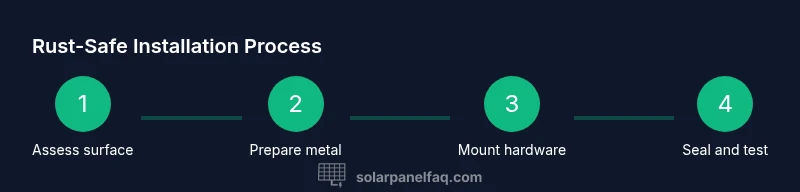

Steps
Estimated time: 3-6 hours
- 1
Assess surface condition and plan
Carefully inspect the rust depth and substrate integrity. Decide whether repair or replacement is necessary before mounting. Document findings with photos for warranty and code compliance.
Tip: Take baseline measurements and photos before any work. - 2
Clear loose rust and debris
Use a steel wire brush or grinder to remove loose rust and flaking paint. Work methodically to avoid gouging the metal, which could worsen corrosion.
Tip: Wear PPE and work slowly to prevent heat buildup. - 3
Apply rust converter and cure
Apply rust converter to oxidized areas; it converts rust to a stable compound. Allow the converter to cure per product instructions before priming.
Tip: Do not rush curing; premature priming can reduce adhesion. - 4
Prime and seal prepared metal
Coat the treated area with a zinc-rich or epoxy primer. Let it dry fully; this creates a corrosion-resistant base for hardware.
Tip: Ensure a clean, dry surface before priming. - 5
Position mounting hardware and mark holes
Place rails or brackets on the prepared surface and mark pilot hole locations. Use a level to ensure proper alignment for panel orientation.
Tip: Double-check alignment before drilling any holes. - 6
Drill pilot holes and install backer plates
Drill pilot holes into structural members where possible; install backer plates to distribute load and reduce stress concentration.
Tip: Use corrosion-resistant bits and avoid over-tightening. - 7
Attach rails/brackets and mount panels
Secure mounting hardware to the surface with appropriate fasteners. Attach rails or brackets and mount the solar panels per manufacturer instructions.
Tip: Tighten to spec and re-check alignment after mounting. - 8
Seal penetrations and route electrical
Seal all penetrations with sealant; route DC cables through weatherproof conduit. Ensure proper grounding and strain relief.
Tip: Keep cables away from heat sources and avoid sharp bends. - 9
Final inspection and documentation
Inspect for water intrusion, verify electrical continuity, and test system performance. Document the installation for warranty and future maintenance.
Tip: Record serial numbers and take a post-installation photo set.
Frequently Asked Questions
Is it safe to mount solar panels on a rusted roof?
Yes, with thorough rust assessment, proper preparation, and corrosion-resistant mounting. If the substrate is compromised, consult a pro.
Yes, but only after assessing and stabilizing the surface and using corrosion-resistant mounting.
What kind of rust is acceptable for mounting?
Surface rust without deep pits can often be stabilized, but deep rust requires repair or replacement of the affected area.
Surface rust is sometimes acceptable if there are no deep pits.
Do I need to hire a professional for rust-prone installations?
For uncertain roof conditions or complex geometries, a licensed installer with rust experience is recommended.
In risky cases, get a professional to assess and install.
Will rust treatment affect warranty?
Warranties may require specified corrosion protection; follow manufacturer guidelines and keep documentation to avoid claims issues.
Follow guidelines and keep records to maintain warranty eligibility.
What permits are typically required for this work?
Electrical permits and roof-work approvals are common; check with local authorities and your utility.
check local rules for permits and inspections before starting.
Watch Video
Top Takeaways
- Assess rust depth thoroughly before mounting.
- Use rust converters and primers to stabilize metal.
- Choose mounting methods that minimize rust growth and leaks.
- Seal and ground properly to protect electrical safety.
- Maintain a maintenance log for long-term performance.
