Parallel vs Series Solar Panel: A Practical Comparison
A thorough, objective comparison of parallel and series solar panel wiring. Learn how voltage, current, shading, expansion, and system safety differ between configurations to choose the best approach for your home.
In most home solar setups, parallel wiring preserves voltage while increasing current, while series wiring increases voltage and lowers current. The right choice depends on inverter input, available space, shading, and future expansion. For homeowners, understanding these trade-offs helps tailor a safe, scalable system.
Core Electrical Concepts Behind Parallel and Series Configurations

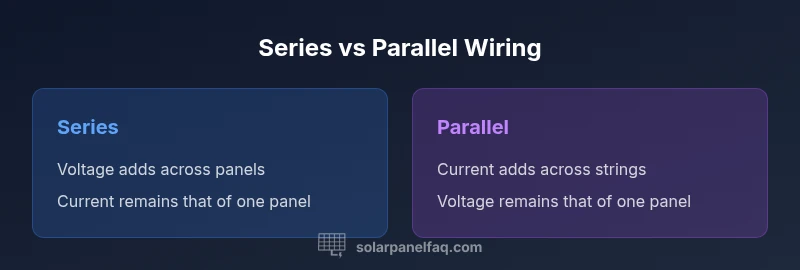

At its core, the debate between parallel vs series solar panel wiring is about how electrical parameters add up across panels. When panels are wired in series, their voltages sum while current stays roughly the same as a single panel. In parallel, voltages stay constant (equal to one panel’s voltage) while currents add together. This distinction shapes every subsequent design choice, from inverter compatibility to shading resilience. According to Solar Panel FAQ, a solid grasp of these basics is essential before touching advanced topics like MPPT tuning or string sizing. For homeowners evaluating a rooftop array, the key takeaway is that voltage and current behave like a duet: you can increase one at the expense of the other, depending on whether you connect panels in a line or side-by-side. As you consider parallel vs series solar panel configurations, remember that real-world constraints — such as inverter input limits, cable losses, and space — will drive the final decision. This section sets the stage for practical analysis by outlining what changes when you alter the topology.
Series Wiring: Why and When It Makes Sense
When you wire solar panels in series, you add voltages together. This approach is advantageous when your inverter or charge controller requires a higher input voltage to reach optimal operating points, or when you want to minimize current to reduce conductor losses over long runs. However, higher string voltages can trigger safety concerns and require equipment with higher voltage ratings. If shading or mismatch is a factor, a single shaded panel can limit the entire string’s output, making meticulous string design essential. In real-world homes, the series approach is common in installations where the roof angle or available space favors longer strings rather than parallel banks. The key is to balance string voltage against equipment ratings, thermal stability, and available cable gauge. In short, parallel vs series solar panel wiring decisions hinge on the inverter’s voltage window and how much shade exposure your landscape tolerates. For many homeowners, a predominantly series layout simplifies voltage management while leaving room for optimization in other sections of the system.
Parallel Wiring: Gains in Resilience and Flexibility
Wiring panels in parallel keeps the array’s voltage at a single-panel level, while the currents of each branch add together. This makes parallel configurations inherently more tolerant to shading, as a shaded string doesn’t necessarily drag down the entire array’s voltage. It also supports easier expansion: you can add more parallel strings without dramatically changing the voltage profile. On the downside, parallel systems typically require thicker wiring to handle higher current, which can increase cost and panel mounting complexity. For homeowners with limited roof space or uneven shading, parallel wiring often delivers measurable real-world benefits. The choice between parallel vs series solar panel wiring comes down to how much you value shading resilience, maintenance simplicity, and the inverter’s current-handling capabilities. In practice, many installations employ a hybrid approach that uses short series strings in parallel with additional strings, combining the strengths of both topologies.
Hybrid Approaches: Combining Series and Parallel for Practical Systems
A hybrid approach uses small series strings that are then connected in parallel, or vice versa. This method attempts to optimize both voltage and current, accommodating inverter input limits while reducing shading vulnerability. It also provides an incremental path for expansion, allowing you to add strings without dramatically altering the total voltage profile. When planning a hybrid configuration, careful attention to compatibility between panels, combiner boxes, and the inverter is essential. Check the manufacturer’s data sheets for Voc, Isc, and MPPT voltage ranges to ensure the chosen topology remains within safe operating limits under all expected conditions. A well-designed hybrid system can achieve a pragmatic balance between parallel vs series solar panel wiring while keeping installation, maintenance, and future upgrades manageable.
System Sizing, Maximum Input, and Safety Considerations
Sizing a solar array involves matching the array’s electrical characteristics to the inverter or charge controller’s input window. In practice, the series vs parallel decision affects how you approach maximum input, protection devices, and string counts. Higher voltages from series strings may push you toward equipment with higher voltage ratings, while parallel configurations push you toward higher current handling. For safety, ensure proper overcurrent protection, disconnects, and appropriately rated conductors. Solar Panel FAQ analysis shows that the ideal topology often depends on site conditions, including roof orientation and potential shading patterns. A conservative approach is to design with some headroom in voltage and current to avoid over-stressing components during temperature swings or aging. The result is a robust design that minimizes the risk of inverter tripping, line losses, and overheating while preserving flexibility for future expansion.
Temperature Effects and Degradation Over Time
Temperature changes influence series and parallel configurations similarly in principle, but practical effects can diverge due to system voltage and current dynamics. Higher string voltages can become more sensitive to temperature fluctuations, while higher currents may amplify conductor resistive losses. Degradation over time tends to affect panel performance uniformly, but mismatch can magnify aging in a string if one panel degrades faster than its neighbors. In both topologies, regular performance monitoring helps catch issues early and minimizes long-term energy losses. The key takeaway is that thermal behavior and panel aging interact with the chosen wiring strategy, so designers should anticipate gradual performance shifts and build in some margin.
Real-World Scenarios: Retrofit vs New Installations
Homeowners retrofitting an existing roof often face constraints such as limited space, limited permit flexibility, and legacy inverter compatibility. In retrofit contexts, a hybrid configuration that tames voltage while maintaining modularity can be particularly attractive. New installations, by contrast, can leverage modern inverters and optimizers to flexibly configure parallel vs series wiring in software, often enabling more aggressive shade optimization and a cleaner electrical layout. Across both scenarios, the core principle remains: align the wiring topology with inverter ratings, anticipated shading, expansion plans, and installer capabilities. This context-rich view helps homeowners apply the parallel vs series solar panel comparison to their unique roof, budget, and goals.
Comparison
| Feature | Series configuration | Parallel configuration |
|---|---|---|
| Voltage profile | Voltage adds in series | Nominal voltage remains at one panel, current adds in parallel |
| Current handling | Current limited to a single panel's current | Currents sum across strings |
| Shade sensitivity | Shading on one panel reduces string output overall | Shading affects only the affected strings, output more resilient |
| Expansion flexibility | Adding panels changes string voltage; may require reconfiguring wiring | Easy to add more strings in parallel as space allows |
| Inverter compatibility | Higher string voltage can approach inverter limits | Lower voltage with higher current may fit standard inputs better |
| Wiring complexity | Longer strings require higher voltage-rated components | More parallel wiring means more combiner boxes and conductors |
| Maintenance and safety | Higher voltage considerations; careful protection needed | Lower per-string voltage; simpler safety protocols |
| Cost and space efficiency | Fewer strings can reduce hardware in some cases | More wiring and protection hardware can increase upfront costs |
Strengths
- Clarifies how voltage and current interact in rooftop arrays
- Supports planning for shade, expansion, and inverter limits
- Helps choose a topology that matches roof layout and future goals
- Encourages consideration of safety and maintenance implications
Drawbacks
- Can oversimplify real-world installations with mixed shading
- Requires accurate panel specs and inverter data to avoid misdesign
- May lead to over-engineering if not aligned with budget or space
Hybrid or site-specific designs often win for real homes
Series offers voltage efficiency; parallel offers shading resilience and expansion freedom. The best choice tends to be tailored to roof conditions, inverter limits, and future plans.
Frequently Asked Questions
What is the key difference between series and parallel wiring?
Series wiring increases voltage while keeping current constant, whereas parallel wiring increases current while keeping voltage constant. This fundamental distinction drives how the array interacts with the inverter, shading, and expansion plans. Understanding it helps in designing a safer, more efficient system.
Series increases voltage; parallel increases current. This affects inverter selection and shading resilience.
Can I mix series and parallel in a single system?
Yes, many systems use a hybrid topology that combines short series strings in parallel. This approach balances voltage and current to fit inverter limits and shading conditions. Careful design ensures safe operation and optimal performance.
Hybrid wiring is common; it blends series and parallel for better balance.
How does shading affect series vs parallel wiring?
Shading affects series strings more severely since current is common to the string. In parallel, shaded strings can still contribute current, albeit reduced, making the overall output less sensitive to partial shading. Design choices should reflect typical shading patterns on your roof.
Shading hurts series more; parallel offers resilience, but not immunity.
Is there a risk if panels have mismatched voltages?
Mismatched panel voltages can cause uneven current sharing and reduce overall performance in both topologies. It’s critical to select panels with similar electrical characteristics and to use proper combiner and protection components.
Always match panel specs and use correct protection.
Do inverters prefer series or parallel wiring?
Inverters have voltage and current limits; the preferred topology depends on aligning the array’s electrical output with those limits. Some inverters handle higher voltage strings better, while others optimize higher-current, lower-voltage configurations. Software-based optimizers can also help.
Inverter limits guide the wiring choice.
How do temperature and aging affect configurations?
Temperature and aging influence voltage and current over time. Higher voltages can magnify thermal effects, while aging can increase mismatch in a string. Regular performance monitoring helps detect drift and prevent long-term losses.
Temperature and aging matter; monitor performance over time.
Top Takeaways
- Assess roof shading and space before choosing topology
- Match wiring design to inverter input specs
- Consider hybrid approaches for balanced performance
- Plan for future expansion from day one
- Keep safety and maintenance in mind during design
