Solar Panel Y Connectors Guide

What are solar panel y connectors?

Solar panel y connectors are a type of DC electrical connector designed to join two solar panel strings into a single, parallel output. They typically feature two input branches that splice into a common output, allowing two strings to share the same voltage while their currents add together. Quality versions include weather-resistant housings and secure locking mechanisms to prevent accidental disconnections in outdoor environments. When selecting y connectors, look for compatibility with common photovoltaic connectors, proper polarity markings, and robust seals to resist moisture, dust, and UV exposure. Remember that these connectors are part of a broader wiring strategy and should be matched to the string voltages and current ratings of your array. Using the right connectors reduces losses, minimizes hotspot risk, and helps future expansion.

How Y connectors fit into solar array layouts

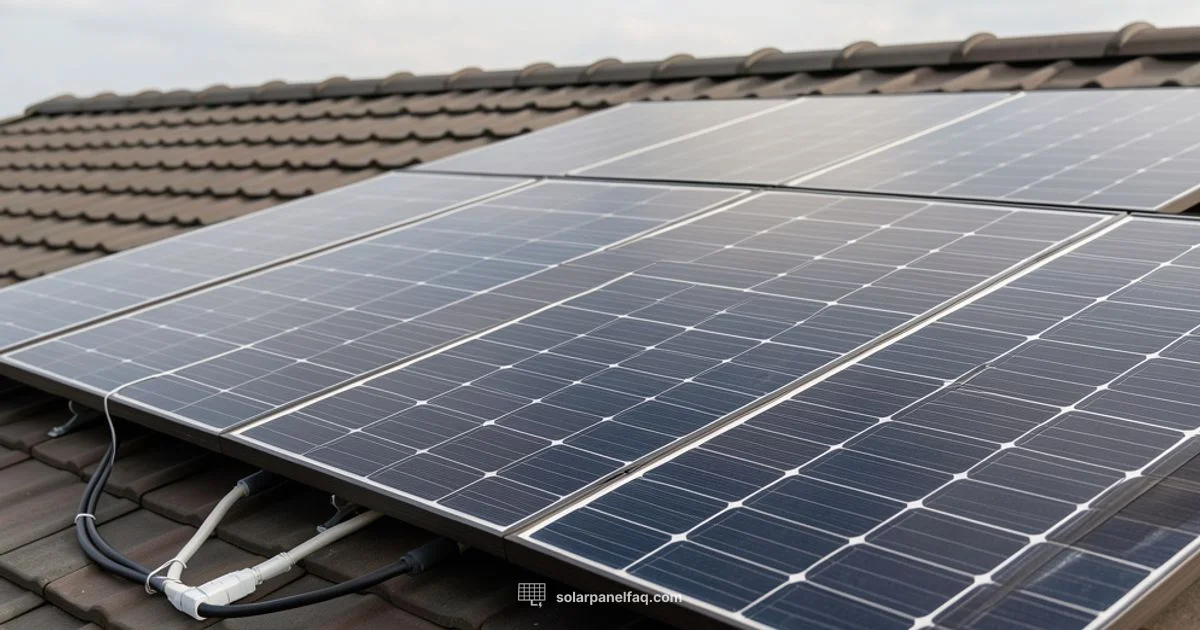

In many rooftop and ground-mounted arrays, Y connectors are used to link two shorter strings into a single feed that leads to the combiner box or charge controller. The key principle is parallel connection: the voltage across each string remains the same while currents add. This approach can simplify wiring when panels are arranged in two rows or when space constraints favor splitting and recombining strings. Ensure the strings connected by a Y connector originate from panels with similar electrical characteristics and that the overall string current stays within the rating of the downstream equipment.

Sizing, ratings, and compatibility considerations

Before purchasing Y connectors, confirm that they are rated for the system voltage and the maximum current expected from the two strings they will join. Compatibility with your existing connectors or MC4 family is important to ensure a secure, weatherproof fit. Check for weatherproof seals, UV resistance, and temperature tolerance appropriate to your climate. The goal is to minimize resistance at the point of connection and maintain a safe, compliant installation. Always consult the manufacturer’s guidelines for the exact rating and any required accessories, such as compatible branch cables and protective covers.

Choosing weatherproof vs indoor rated connectors

Outdoor solar installations demand weatherproof connectors designed to resist rain, temperature swings, and prolonged sun exposure. Indoor connectors may lack seals, gaskets, or corrosion resistance, which can lead to contact resistance and failure in outdoor conditions. If you plan to place the Y connectors outdoors or on a roof, select products with proper IP ratings, robust housing, and secure locking mechanisms. For indoor wiring runs or garage installations, indoor-rated connectors may be acceptable, but keep humidity and dust in mind and consider future expansion when choosing the type.

Installation steps and best practices

Start with a clear wiring plan that matches your array layout. Power down the system and verify there is no residual voltage before touching any cables. Connect the two panel strings to the Y connector one branch at a time, ensuring correct polarity and a firm, clean contact. Use weatherproof enclosures or protective sleeves where needed, and secure cables with clips or ties to prevent movement. Keep connectors dry, away from standing water, and avoid bending the cables sharply. After assembly, perform a light inspection for loose parts, damaged seals, or signs of wear before re-energizing the system.

Common mistakes, troubleshooting, and safety

Common errors include mixing strings with different voltages or lengths, which can create imbalances or backfeed. Never connect dissimilar connector types or force a mismatch to save time. Check polarity marks and test continuity with a meter when safe to do so, and inspect connectors regularly for corrosion or degraded sealing. In the event of a fault, replace the affected Y connector rather than attempting to bypass it, and follow local electrical code guidelines to ensure a compliant installation.

Maintenance and long-term care

Regular maintenance helps ensure reliable performance. Inspect Y connectors for cracks, corrosion, or moisture intrusion after heavy rain or snowfall. Clean dirt and debris from contact surfaces with a dry brush, and reseal any weatherproof joints if you notice wear. Store spare connectors in a dry, sealed container and replace worn parts promptly to prevent intermittent connections that can degrade system performance. Keeping a simple log of inspections can support future expansion or maintenance needs.

Real world use cases and homeowner best practices

For homeowners aiming to expand a modest system without rewiring large sections, Y connectors can offer a practical path to parallel two strings into a single feed. Use them with panels that are structurally compatible and mounted in similar conditions to minimize mismatch. Pair Y connectors with a properly rated combiner box, proper fusing, and a quality charge controller to maintain safe operation and room for future growth.
