Solar Panel and Inverter: A Complete Home Guide
Learn how to select, size, install, and maintain a solar panel and inverter system. This guide covers components, wiring basics, safety, costs, and optimization for homeowners and solar buyers.
You will learn how to select a compatible solar panel and inverter, determine system size, and perform safe installation planning. This guide covers wiring basics, safety checks, and maintenance tasks, plus practical tips for evaluating performance and potential payback. Follow the step-by-step process to plan, install, and optimize your solar setup.
Understanding the core components: solar panel and inverter
A solar panel converts sunlight into direct current (DC) electricity, while an inverter changes that DC into alternating current (AC) usable by home appliances. The Solar Panel FAQ team emphasizes that a well-matched pair is essential for reliability and safety. In power terms, you size the panel array to generate enough energy for your needs, then choose an inverter that can handle the resulting DC input and the AC output required by your loads. This foundation helps homeowners grasp how production, performance, and safety intertwine in real-world solar setups.
How the two devices work together: from sun to socket
Sunlight excites electrons in PV cells within the solar panel, producing DC electricity. The inverter then converts this DC into AC, which powers lights, outlets, and appliances. Some systems include a battery to store excess energy for later use. By understanding the flow—sun -> panels -> DC -> inverter -> AC -> home grid—you can assess performance, predict energy savings, and troubleshoot issues more effectively. According to Solar Panel FAQ, most residential setups optimize continuous output by balancing panel efficiency with inverter capacity and headroom for future expansion.
Sizing and compatibility: match panels to inverter and loads
Sizing hinges on three factors: your daily energy use, local sun exposure, and the inverter’s input rating. A mismatch can waste energy or stress components. Start with your typical daytime energy needs, then estimate required panel wattage and total system voltage. Inverters come in various sizes and types (string, microinverters, or power optimizers). The goal is to ensure the inverter can handle peak DC input while delivering sufficient AC output for peak load times. Keep in mind that oversizing beyond realistic output can raise costs with diminishing returns.
Types of solar panels and inverters: pros and cons
Solar panels come in mono-, poly-, and thin-film varieties. Mono-crystalline offers high efficiency and compact footprint; poly is typically cheaper but slightly less efficient. Inverter options include string inverters, microinverters, and power optimizers. String inverters are cost-effective for larger arrays but may suffer performance losses if shading is uneven. Microinverters maximize individual panel performance, especially in shade-prone roofs. The choice depends on roof layout, budget, and long-term goals for maintenance and monitoring.
Wiring basics, safety, and permitting fundamentals
Installation requires careful attention to wiring runs, conduit, disconnects, and overcurrent protection. Use DC-rated conductors for PV wiring, properly sized breakers, and a clearly labeled AC disconnect. Permitting typically involves fire and electrical codes; local inspectors may require adherence to NEC or regional equivalents. Always de-energize circuits before work, wear protective gear, and verify voltage with a multimeter. This phase lays the groundwork for a safe and compliant system.
Planning your installation: site survey to mounting plan
Begin with a site assessment: roof orientation, angle, shading, and access to unshaded space. A good mounting plan accounts for wind uplift, snow load, and corrosion resistance. Define cable routes, conduit paths, and a clear disconnect location visible from the main panel. If you’re working with a contractor, share the mounting plan and electrical design so they can verify code compliance and wiring diagrams before you commit to hardware orders.
Monitoring, maintenance, and troubleshooting over time
Most modern systems offer online dashboards showing production, irradiance, and performance metrics. Regular maintenance includes cleaning panels, inspecting for loose connections, and verifying rapid shutdown functionality. Troubleshooting steps range from checking shaded areas and dirt buildup to inspecting wiring for wear and confirming inverter fault codes. Solar heating, aging components, or interconnection issues can reduce output, so periodic checks are essential for staying on track with savings.
Costs, incentives, and long-term value: what homeowners should expect
Costs vary by panel type, inverter choice, roof complexity, and installation labor. Incentives and tax credits may reduce net cost, while warranties protect long-term performance. Instead of chasing a single price, evaluate a system’s potential annual savings against upfront and ongoing costs. Solar Panel FAQ analysis (2026) notes that payback timing varies by location and usage patterns, so comparing site-specific estimates is essential for realistic planning.
Common mistakes and how to avoid them
Avoid skipping a formal site survey, underestimating roof loads, or choosing an inverter that can’t accommodate future expansion. Oversizing wires or skipping proper labeling can create safety hazards and noncompliance. Don’t underestimate weather exposure and maintenance needs; neglecting these can erode system performance. Planning with a qualified professional and adhering to code requirements reduces risk and increases system lifespan.
Real-world tips: maximizing efficiency and return on investment
Shade management, panel orientation, and module cleanliness directly affect output. Consider upgrading to higher-efficiency panels if roof space is limited. Monitoring data can reveal underperforming strings, allowing targeted maintenance or repair. A well-documented maintenance routine and proactive component checks prolong system life and improve return on investment. The Solar Panel FAQ team also highlights the importance of proper insurance coverage and system documentation for peace of mind.
Recap and next steps for homeowners
With a solid understanding of solar panel and inverter basics, you can begin sizing, selecting, and planning installation with confidence. Gather energy use data, perform a site assessment, and consult local codes and incentives. For deeper guidance, consult your installer and reference Solar Panel FAQ resources to ensure you’re aligning with best practices and modern standards.
Tools & Materials
- Safety gear (gloves, goggles, non-slip shoes)(Solar-rated gloves recommended for handling wiring)
- Digital multimeter(Measure voltage and continuity safely)
- Non-contact voltage tester(Quickly verify de-energized circuits)
- DC-rated PV wiring (e.g., 4mm2 or larger)(Appropriate insulation for solar circuits)
- Conduit, fittings, and cable organizers(Protect and route wiring neatly)
- AC disconnect switch(Visible shutoff near the main panel)
- DC disconnect switch(Isolation for PV array during maintenance)
- Appropriate mounting hardware and rails(Secure roof mount with corrosion resistance)
- Inverter with matching input rating(Ensure it handles total panel DC output)
- Monitoring device or software(Track production and performance)
- Insulation tape and labeling tools(Label all live conductors for safety)
- Ladder and fall protection gear(Roof access safety)

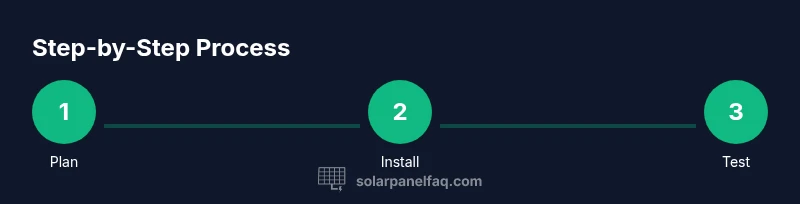

Steps
Estimated time: Total time: 2-4 days for planning, permitting, and installation, depending on roof complexity and contractor coordination
- 1
Assess energy needs and site conditions
Begin by reviewing your electricity usage data and local sun exposure. This step defines system size and informs panel orientation, mounting type, and inverter capacity. Document any shading from nearby structures or trees.
Tip: Use a sun path diagram for your roof to optimize orientation and avoid late-day shading. - 2
Choose components that match your goals
Select solar panels with appropriate efficiency and a compatible inverter type (string, microinverters, or optimizers). Consider future expansion and warranty terms. Confirm compatibility with local electrical codes.
Tip: Plan for some headroom (10-20%) to accommodate aging performance and potential expansion. - 3
Plan mounting and wiring routes
Draft a mounting plan that accounts for roof structure, wind loads, and drainage. Decide cable routes, conduit runs, and the location of AC and DC disconnects. Label everything clearly for service access.
Tip: Map out cable pathways to minimize bending radii and heat buildup. - 4
Prepare electrical disconnects and panels
Install or verify the presence of AC and DC disconnects near the main panel and the array. Ensure the main service panel has available space for the interconnection and confirm grounding requirements.
Tip: Test disconnect functionality with a non-contact tester before proceeding. - 5
Install mounting rails and mount panels
Secure rails with appropriate fasteners, then mount panels in sequence. Check for level alignment and tight mounting hardware. Keep modules clean during handling.
Tip: Use a torque wrench to apply manufacturer-recommended fastening torque. - 6
Connect wiring and configure the inverter
Run DC cables to the inverter, connect the AC output to the main panel, and configure the inverter settings per the manufacturer’s guidance. Verify polarities and wire sizing.
Tip: Double-check cable labeling and keep a clear separation between DC and AC conductors. - 7
Perform safety checks and inspection
Confirm all connections are secure, shielding is intact, and there are no exposed live conductors. Have an electrical inspector review the system as required by local codes.
Tip: Wear PPE during final checks and take photos for records. - 8
Test operation and monitor performance
Power up the system and verify steady DC and AC outputs. Use the monitoring dashboard to compare actual production with projected values across different times of day.
Tip: Record baseline data to track future performance and detect deviations early.
Frequently Asked Questions
What is the difference between a solar panel and an inverter?
A solar panel converts sunlight into DC electricity, while an inverter converts DC to AC to power home devices. They are complementary: panels generate power and the inverter makes it usable in a household electrical system.
Solar panels capture sunlight and create DC electricity; inverters convert that DC into AC power your appliances use.
Can I install a solar panel and inverter myself?
Do-it-yourself installation is possible for small, off-grid setups with proper training and safety. Most home installations require a licensed electrician and permit approvals to meet electrical codes and insurance requirements.
DIY work can be risky; many homes need a licensed electrician for code compliance.
How do I size a solar panel and inverter for my home?
Start with your daily energy usage, assess sun exposure for your location, and choose an inverter with enough headroom for peak production. Account for future electricity needs and potential expansions.
Look at your energy use, sun exposure, and pick an inverter that can handle peak output.
What safety considerations matter most?
Always de-energize circuits before work, use PV-rated components, wear protective gear, and ensure proper grounding. Obtain necessary permits and have inspections to verify compliance.
Turn off power, wear PPE, and get inspections for safety and code compliance.
What about warranties and maintenance?
Panels and inverters typically come with warranties spanning 10-25 years. Regular cleaning, performance monitoring, and timely repairs extend system life and protect your investment.
Warranties cover many years, and routine upkeep helps keep performance high.
Watch Video
Top Takeaways
- Size and components must be matched for safe operation
- Proper mounting and wiring are essential for performance and safety
- Permits and inspections are often required for compliance
- Monitoring helps sustain energy gains and detect faults early
- Plan for expansion and warranty coverage to maximize ROI
