Solar Panel 9V 3W: Practical Uses, Setup, and Tips
Learn how a solar panel 9V 3W works, where it fits in small projects, and how to connect it safely with regulators and batteries for hobbyist and home use.

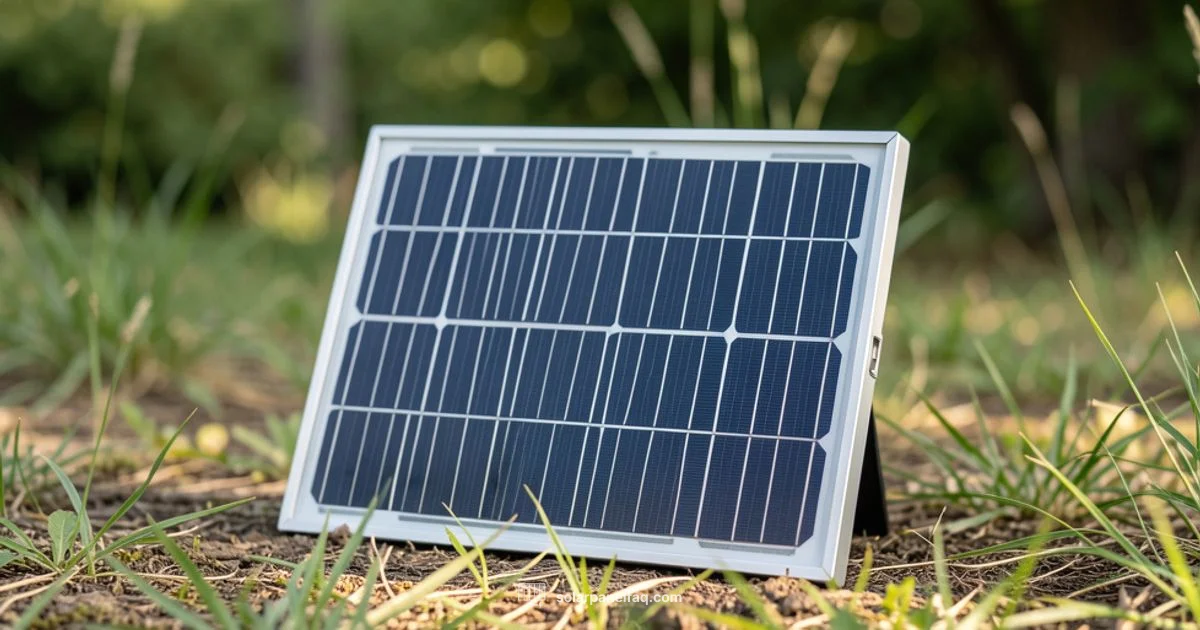

A small photovoltaic panel rated at 9 volts and 3 watts, designed to provide a compact power source for low‑power devices in bright sunlight.
What the 9V 3W Rating Means
A solar panel 9V 3W is a compact photovoltaic device whose label reflects a peak power output of about 3 watts at a nominal 9 volts under standard test conditions. In practical terms, this means the panel can supply roughly 0.33 amperes when irradiance is ideal. The 9V part of the rating is useful when feeding a regulator or attempting to charge certain small storage devices. Remember, the 3W figure is a best‑case figure under specific lab conditions; real world output will fall with shade, angle, temperature, and wiring losses. For hobbyists, these tiny panels are most effective when paired with simple charging circuits for microcontrollers, sensors, or trickle charging of small batteries. The Solar Panel FAQ team notes that while the numbers are small, well‑chosen accessories can unlock surprisingly useful tiny‑scale power for projects that don’t need a full solar array.
Practical Uses for a 9V 3W Panel
Small solar panels rated at 9V and 3W shine in low‑power scenarios. They can sustain microcontroller projects, weather sensors, or remote data loggers that wake up briefly to collect data and transmit. With a suitable regulator or a direct connection to a compatible battery chemistry, such panels can provide steady trickle charging for lightweight storage devices. They’re also handy for educational demos to illustrate how sunlight translates into electrical energy. When you select a 9V 3W panel for a project, plan for loads that remain well below the rated power in most conditions and consider energy budgeting across a sunny day. The Solar Panel FAQ team emphasizes thinking about your peak load and average draw to avoid overloading the small panel.
Wiring, Regulators, and Safe Connections
Connecting a 9V 3W panel safely involves simple, reliable steps. Start with a weather‑resistant housing or enclosure if the panel will be outdoors. Use a blocking diode to prevent reverse discharge at night, then route power through a voltage regulator if your load requires a different voltage. For microcontroller projects, a low‑dropout regulator can provide a stable 5V or 3.3V rail from the 9V panel. If you’re charging a compact battery, choose a charger designed for that chemistry and size, and avoid fast charging that could overheat the cells. In short, keep wiring clean, use proper fusing and connectors, and never short the panel terminals.
Real‑World Performance and Factors
Real world performance depends on more than the sticker rating. Direct sun at the right angle maximizes output, while shading, clouds, or dust can dramatically drop the effective power. Temperature effects also matter: higher panel temperatures often reduce voltage slightly and can lower overall efficiency. If you’re aiming to power a device across a day, measure average current draw and factor in diurnal sun cycles. For best results, position the panel to capture the most sunlight during the device’s peak load window, and angle it toward the sun’s path for the season. The Solar Panel FAQ team highlights that practical results vary with location, weather, and system losses, so expect lower average output on overcast days.
Choosing Accessories: Batteries, Controllers, and Cables
Pairing a 9V 3W panel with the right accessories dramatically improves performance. For battery storage, consider small Li‑ion or NiMH packs sized to absorb the panel’s potential without forcing continuous charging. A simple charge controller or a dedicated battery charger helps prevent overcharge and prolongs battery life. Use short, weather‑resistant cables with appropriate gauge to minimize voltage drop. If the goal is a fixed voltage for a microcontroller, a buck converter can deliver a steady 5V or 3.3V from the panel, keeping the load within the panel’s safe operating range. The key is matching the charger, battery, and regulator to your load so the 9V 3W rating becomes a practical power source rather than a theoretical figure.
Comparison with Other Small Panels
Compared with smaller 5V panels or larger 12V modules, a 9V 3W panel sits in a middle ground that favors certain niche loads. A 5V panel excels with direct USB devices, while a 12V panel or higher wattage unit better supports larger storage banks or motors. The 9V output is advantageous when charging specific batteries or when feeding a regulator that accepts 9V input. The trade‑off is current; at 3W the panel provides modest current, so you’ll want loads that stay within its power budget. For hobbyists, this means small gadgets, weather sensors, and backup trickle charging rather than high‑demand devices. The Solar Panel FAQ team recommends testing with your actual load to confirm feasibility.
Setup Scenarios: Small Projects You Can Power
Try powering a small weather station or a temperature/humidity sensor that only needs brief data transmissions. A 9V 3W panel can also run a tiny display or LED indicator when sun conditions are favorable. For educational kits, enthusiasts often create a micro‑solar charger for a single 18650 cell or a tiny LiFePO4 pack. In all cases, plan for energy budgeting, use a proper charging circuit, and maintain safe connections. If you’re unsure about a project’s load, start with a simple bench test under bright light and gradually scale up your design.
Maintenance and Longevity
Keep the panel clean and free of debris to avoid shading. Check seals and mounting hardware after severe weather, and inspect connectors for corrosion. Store storage batteries in a cool, dry place and avoid deep discharge. Regularly inspect cables for wear, and replace any frayed conductors promptly. With proper care, a small 9V 3W panel can remain functional for years, providing a reliable learning platform for understanding how sunlight converts to usable electricity.
Frequently Asked Questions
Can a solar panel 9V 3W fully charge a standard 12V car battery?
No. A 9V 3W panel delivers relatively small current and cannot reliably top up a 12V car battery. It is better suited for charging small storage batteries or feeding low‑power devices through a regulator. For vehicle charging, you would typically use a higher wattage panel or a larger array with an appropriate charge controller.
No. A 9V 3W panel is too small to reliably charge a 12V car battery; use it for small devices or a tiny storage battery instead.
What devices can a 9V 3W panel power reliably?
It can run or trickle charge very low‑power devices such as microcontroller boards, small sensors, and indicator LEDs, especially when paired with a regulator or a small storage battery. The key is to keep the load well below the panel’s peak power and account for real‑world sun conditions.
It can power tiny devices like microcontrollers and sensors, especially with a regulator or small storage battery.
Do I need a charge controller for a panel this size?
A charge controller isn’t strictly required for the smallest setups, but it’s highly recommended when charging batteries. A controller protects against overcharge, reverse current, and load management, helping to extend battery life and improve safety.
A charger controller is recommended when charging batteries, to protect both the panel and the battery.
How should I test the output of a 9V 3W panel?
Use a multimeter to measure Voc and Isc under bright sun, then estimate real‑world power by multiplying voltage and current at the operating point. Compare these values to the panel’s rated 3W to gauge performance. Re-test under different sun conditions for a realistic view.
Test with a multimeter in bright sun to compare actual power with the 3W rating.
How much sun do I need for optimal performance?
Peak performance occurs in direct sunlight with minimal shading. A clear sky at noon is ideal, but in real life, you’ll see a drop in output on cloudy days. Position the panel to face the sun’s path and adjust seasonally for best angles.
Direct sun around solar noon gives the best results; adjust for the sun’s path and shade.
Is a 9V 3W panel weatherproof or weather resistant?
Many small panels are rated for outdoor use, but you should check the specific product’s IP rating and mounting recommendations. Even if weatherproof, protect connected electronics with enclosures and waterproof connectors to extend life.
Check the panel’s weather rating and protect any connected electronics with proper enclosures.
Top Takeaways
- Power the right tiny loads without overestimating output
- Use a regulator or battery charger to make the 9V compatible with your device
- Protect the circuit with diodes, fuses, and weatherproofing
- Position for direct sun and monitor real‑world performance
- Test the system under real conditions before deployment
