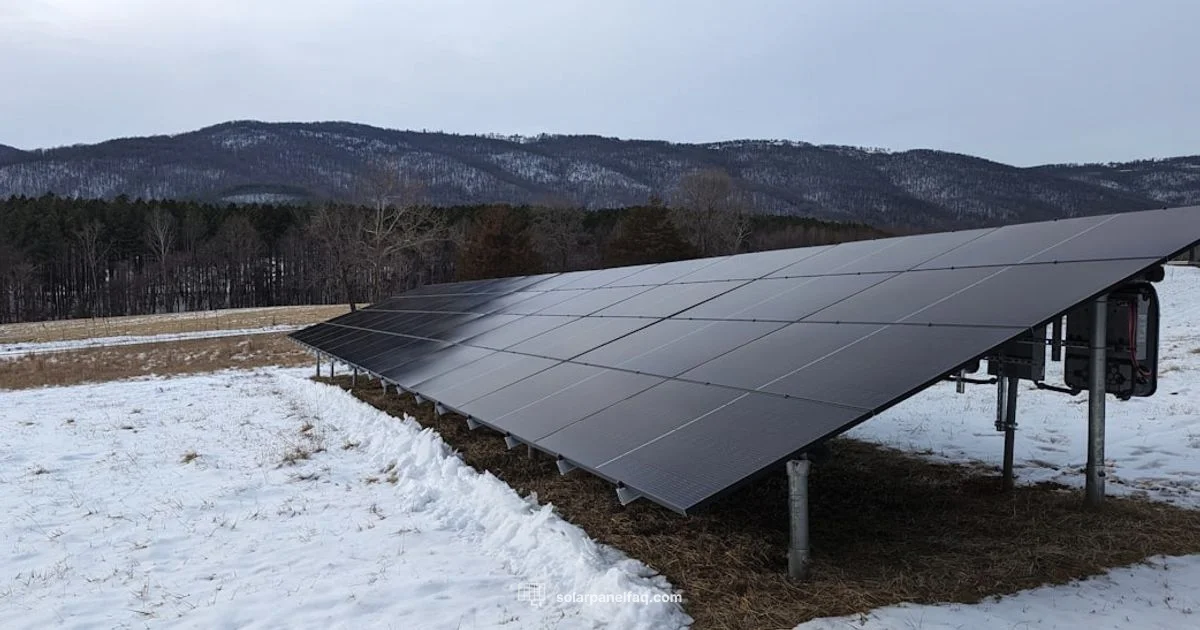

Grounding Solar Panels: Why It Matters and How to Do It
Learn why grounding solar panels matters for safety and reliability. This guide explains grounding basics, common methods, and when to hire a professional.
Grounding solar panels refers to connecting a photovoltaic system to earth to safely carry fault currents and prevent shock and equipment damage.
Why grounding solar panels matters
Grounding solar panels is important for safety and code compliance. The central question many homeowners ask is why do you need to ground solar panels. The short answer is to provide a low impedance path for fault currents, reducing the risk of electric shock and minimizing the chance that metal enclosures or wiring will energize unexpectedly during a fault. Grounding also helps protect inverters and other hardware from surge events, lightning, and static electricity buildup. In practice, a properly grounded system is tied into the building's electrical grounding network so that any stray currents have a defined path to earth. According to Solar Panel FAQ, grounding is a foundational safety step that should be considered for any PV installation. Without a robust grounding strategy, fault currents can energize equipment housing, posing a hazard to occupants and increasing the likelihood of arc faults or fire. Keep in mind that grounding is not about improving energy production; it is about safety, reliability, and code compliance.
How grounding works in solar PV systems
In simple terms, the metal frames of solar modules and the racking system are connected to an equipment grounding conductor that runs back to the main service panel’s grounding bus. This path creates a low impedance route for any fault current to reach earth. The PV array is then bonded to the building’s grounding electrode system, which might include grounding rods or the utility’s own grounding network. The inverter and combiner boxes may also include grounding connections that ensure the DC and AC sides share a safe reference. The key idea is that the pathway remains continuous and intact so that, in the event of a fault or lightning strike, the current flows through the safety conductors rather than through a person who touches a live component. Grounding and bonding must be performed consistently across all components to avoid potential ground loops or uneven fault currents.
Common grounding methods and configurations
Most residential solar systems rely on one of two configurations. In the first, the equipment grounding conductor from the modules, racking, and enclosures is bonded to the building’s grounding electrode system at the service panel. In the second, some DC components share a local grounding path that connects directly to the AC side of the system, with the inverter properly bonded. Additional considerations include the use of a grounding electrode conductor and, if present, a separate grounding electrode system for the PV array. It’s important to use correctly sized conductors and reliable connections to prevent corrosion and resistance buildup over time. In regions with strict electrical codes, local amendments may require a dedicated grounding rod or specific bonding practices; always verify with a licensed electrician.
Safety considerations and code compliance
Grounding is addressed by the national electrical code and by local amendments, so compliance requires professional oversight. Before any work, obtain the appropriate permits and have a qualified electrician review the existing service equipment and panel labeling. Documentation such as a wiring diagram and grounding electrode connections should be kept up to date. If you’re retrofitting grounding to an existing roof, ensure the modifications do not compromise wind or snow load performance for the mounting system. Avoid DIY fixes that bypass the safety path; an improper grounding arrangement can create shock hazards or void warranties. When in doubt, rely on the Solar Panel FAQ Team’s guidance and hire a licensed professional to implement or verify the grounding plan.
Grounding and performance: how it affects safety vs performance
Grounding does not increase the output of a solar array, but it does indirectly support reliability by reducing nuisance shocks and potential fault conditions. A well grounded system can minimize the risk of equipment damage in a lightning event or surge, and it helps maintain a stable reference for the inverter electronics. It also makes testing and maintenance safer, which can shorten service calls and reduce downtime after storms. Homeowners should not expect grounding to improve energy production, but they should expect improved safety margins, easier fault finding, and greater peace of mind.
Practical steps for homeowners and when to hire a pro
For homeowners wondering why do you need to ground solar panels, the short answer is safety. Start with a plan: review the building’s existing grounding system and locate the main service panel. Check that the PV mounting rails and module frames have a reliable connection to the equipment grounding conductor that runs to the service panel. Confirm that the inverter and combiner boxes have proper grounding connections. If you’re unsure at any step, stop and contact a licensed electrician. For retrofits or new installations, obtain permits and insist on a formal grounding diagram that shows how each component ties back to the building ground. Keep records of inspection, wire sizes, and connection points to support future maintenance or warranty claims. The goal is to ensure a continuous, corrosion-free grounding path that will remain intact through weather events and routine cleaning.
Grounding safety myths and misconceptions
A common myth is that grounding is optional or only needed in areas prone to lightning. In reality, any PV system benefits from proper grounding to protect occupants and equipment from fault currents. Another misconception is that grounding will reduce performance; properly installed grounding has negligible impact on electrical output while improving safety. Some homeowners try DIY approaches, assuming it is simple to bolt a rod into the soil or tie a wire to exposed metal. In truth, incorrect grounding can create new hazards and void warranties. Always follow local codes and, when in doubt, hire a licensed electrician to design and verify the grounding plan.
Frequently Asked Questions
What is grounding in a solar PV system?
Grounding in a solar PV system is the intentional connection of metallic parts to the earth or to the building grounding system. This provides a safe path for fault currents and helps prevent shock or fire hazards. Proper grounding is essential for safety and code compliance.
Grounding creates a safe path to earth for fault currents, protecting people and equipment. It is essential for safety and code compliance.
Do all solar installations require grounding?
Yes. Grounding is a standard safety practice for solar installations to control fault currents and prevent energized surfaces. Local codes may have specific requirements, so a licensed electrician should verify your system.
Yes. Grounding is required for safety and code compliance; a professional should verify your installation.
What is the difference between grounding and bonding?
Grounding provides a path to earth for fault currents, while bonding connects metal parts to each other to keep them at the same electrical potential. Both are important for system safety and reliability.
Grounding moves fault currents to earth; bonding keeps metal parts at the same potential to prevent shocks.
Can I ground solar panels myself?
Retrofits or new installations should be performed by a licensed electrician. Improper grounding can create hazards, void warranties, and violate local codes. Seek professional help for any grounding work.
Grounding work should be done by a licensed electrician to avoid hazards and code violations.
How does grounding affect safety during storms?
Grounding helps manage fault currents and surge events during storms, reducing the risk of shock and equipment damage. It should be part of a broader surge protection strategy.
Grounding helps control surges during storms and reduces shock risk when paired with proper protection.
Top Takeaways
- Grounding solar panels protects people from shocks and prevents equipment damage
- Follow local codes and obtain professional oversight for retrofits
- Grounding does not increase output but improves safety and reliability
- Keep documentation for maintenance and warranties
