What Is Solar Panel Structure? A Practical Guide

What makes up the solar panel structure

When you ask what is solar panel structure, you are really exploring the physical assembly that turns sunlight into usable electricity. The core components include the tempered glass cover, an aluminum frame, encapsulation layers, the backsheet, the junction box, and the mounting hardware. Together, they form a weatherproof module that withstands wind, rain, and temperature swings while keeping electrical connections safe. Understanding these parts helps homeowners assess durability, installation requirements, and long term performance. The solar panel structure determines not only how much power a panel can produce, but how long it will last in your climate. In practical terms, a well designed structure minimizes corrosion, prevents moisture ingress, and supports safe stringing of cables to inverters or optimizers.

The solar cell layer and encapsulation

The solar cell layer is the heart of the module, where light is converted into electricity. Modern panels use crystalline silicon cells arranged in strings that connect to the overall electrical circuit. These cells are very thin and fragile, so they are protected by encapsulation films and a clear front glass. Ethylene vinyl acetate EVA is commonly used to laminate cells to the outer glass and the backsheet, securing them against moisture and mechanical stress. This encapsulation also helps manage thermal expansion and electrical isolation between high and low voltage areas. The way cells are arranged, and the quality of encapsulation, influence how the panel tolerates temperature changes and shading, which in turn affects reliability and power output over the panel’s lifetime.

The protective framing and materials

The frame provides rigidity and a mounting interface; typically aluminum due to light weight and corrosion resistance. The glass front is tempered and often low iron to maximize light transmission while resisting impact. The corners and joints are sealed to prevent water ingress, and the backsheet behind the cells acts as a moisture barrier and electrical insulator. The materials chosen for the frame, glass, and encapsulation determine how well the panel stands up to hail, wind, and UV exposure. A sturdy frame also helps ensure consistent electrical connections and alignment with mounting hardware, which in turn affects ease of installation and long term reliability.

Backsheet, junction box and electrical interfaces

The backsheet is a polymer layer at the rear of the panel that provides insulation and a moisture barrier. The junction box houses the wiring connections and protection with seals and, in some designs, bypass diodes. Wiring routes from individual cells through the encapsulation to the junction box, where conductors connect to an external inverter or optimizer. Protective gaskets and UV resistant cables are used to extend life in outdoor conditions. Proper sealing and enclosure IP ratings protect against rain, dust, and temperature extremes. These interfaces are critical for safety and performance and are usually designed to minimize resistive losses and potential hotspots.

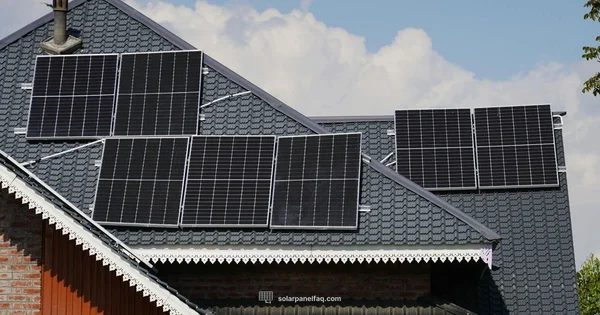

Mounting rails, racking, and roof integration

Mounting rails and racking systems anchor the solar panel to a roof or ground mount. The design must accommodate roof type, wind loads, and tilt angles for optimal sun exposure. Rail materials are typically aluminum for strength and light weight; clamps and fasteners keep panels secure while allowing for thermal expansion. Roof integration considerations include waterproof penetration, sealing around mounting feet, and ensuring that the installation does not compromise existing roof integrity. Proper mounting reduces mechanical stress on the panel and wiring, contributing to durability and consistent electrical performance over time.

Electrical safety features and protection

A robust solar panel structure includes electrical safety features such as properly sealed junction boxes, moisture barriers, and robust cable management. The structure is designed to prevent short circuits and exposure to moisture or sunlight that could degrade insulation. Protective coatings and gaskets help keep out dust and water, while color and material choices reduce heat buildup that can affect efficiency. In addition, mounting hardware should be corrosion resistant to prevent loose connections. All of these factors work together to maintain safe, reliable operation across the panel’s life.

How structure influences efficiency and durability

Structural design impacts efficiency through alignment, minimal shading, and consistent air flow around panels. A stiff frame reduces microcracks and maintains parallel wiring pathways, while proper lamination and encapsulation minimize delamination risks. Weatherproof sealing sustains long term performance by preventing moisture ingress that could deteriorate electrical interfaces. Durability hinges on using materials that resist UV damage, corrosion, and temperature cycling. By understanding the structure, homeowners can predict performance under local climate conditions and choose panels with structural features that suit their environment.

Common configurations by panel type

Panels come in several structural configurations. Crystalline silicon panels use a rigid frame with a laminated front and back, while some newer designs emphasize lighter weight frames or different encapsulation materials. Thin film panels trade some efficiency for flexibility and unique mounting options, which can influence the overall structure and mounting approach. Each type brings tradeoffs in durability, ease of installation, and long term reliability, but all share the core idea: a strong, weatherproof enclosure around the active cell area.

Maintenance and inspection practices for the structure

Regular inspection helps preserve the solar panel structure. Check for loose mounting hardware, corrosion on rails, and seals around edges. Look for any cracks in the glass, delamination of encapsulants, or discoloration in the backsheet that could indicate moisture ingress. Cleaning should be gentle and free of harsh chemicals, and any signs of wear should be addressed by a qualified technician. Establish a routine that aligns with local weather patterns to ensure early detection of issues and to protect warranty coverage.
