Solar Panel Mounting Brackets: A Practical Guide

What is a solar panel mounting bracket and why it matters

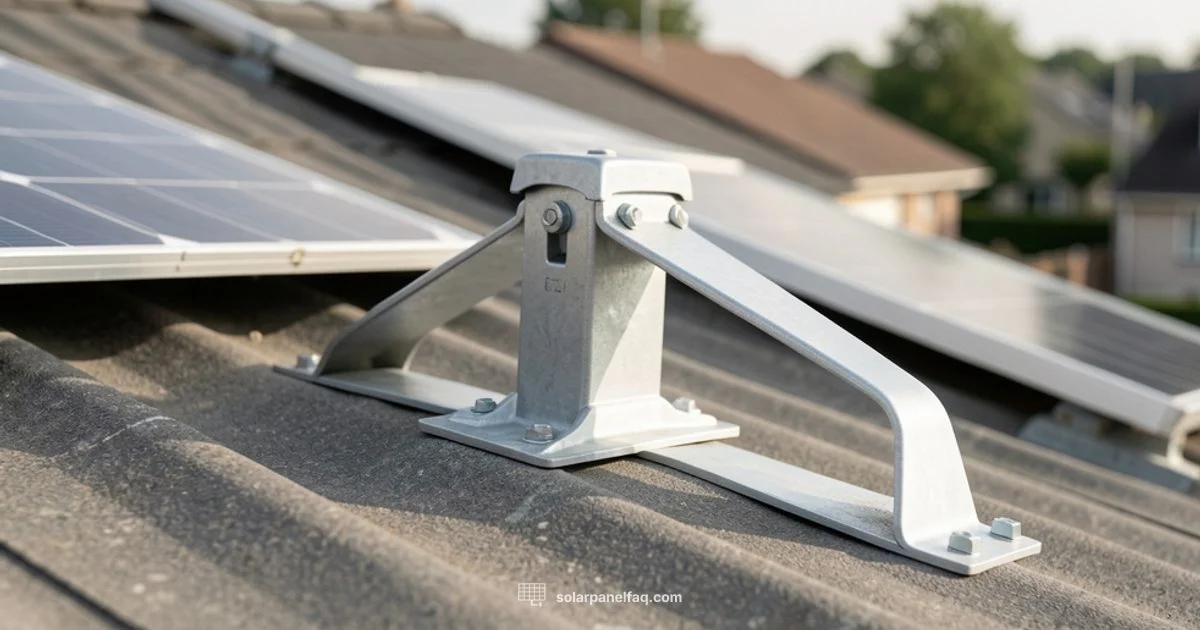

A solar panel mounting bracket is a hardware component that secures solar panels to a roof, rail system, or ground frame, allowing precise positioning and reliable weather resistance. In practice, brackets support the module frames, transfer loads to the substructure, and maintain safe spacing from the mounting surface. For homeowners, choosing the right mounting bracket is foundational to a durable solar installation.

According to Solar Panel FAQ, the most reliable setups start with a bracket that matches the roof type, panel size, and local climate. The mounting bracket you choose affects not only installation ease but also long term performance. A well designed bracket helps prevent panel movement during wind events, makes routine inspection easier, and reduces the risk of roof leaks by distributing fastener stress properly.

In this guide you will learn how mounting brackets differ, how to evaluate corrosion resistance, and how to balance cost with reliability. The term solar panel mounting bracket covers several hardware families, from simple L brackets to rail based systems. Understanding these options empowers you to plan a safer, more durable solar installation.

Materials, design, and mounting options

Brackets come in several materials and configurations, and the choice affects durability, weight, and ease of installation. The most common material is aluminum because it is light, corrosion resistant, and easy to fabricate into different shapes. Stainless steel variants offer superior strength and longer life in harsh environments, especially near salty coastal air or industrial settings.

Design differences include simple L shaped brackets, rail based mounting systems, and standoff configurations that create a small air gap between panels and the roof. Rails provide a continuous mounting track for multiple panels, while fixed brackets lock panels in a single position. Adjustable brackets offer the ability to fine tune tilt and spacing, which can improve airflow and cleaning access. Each option has tradeoffs in cost, wind resistance, and ease of installation, so homeowners should weigh these factors against the project scope. In all cases, ensure the bracket system is compatible with your panel frame profile and with the chosen mounting rails. A solar panel mounting bracket is often integrated into rail systems for streamlined installation.

Roof compatibility and mounting geometry

Roof compatibility is a major consideration when selecting a solar panel mounting bracket. Pitched roofs require different bracket geometry than flat roofs, and the roof surface material influences fastener choices and sealing strategies. For tile roofs you may need special footings that distribute load and protect tiles, while metal or asphalt shingle roofs often use through roof penetrations or clamp style mounts. The goal is to secure the entire array without introducing leaks or excessive roof stress.

Spacing between panels, rail alignment, and alignment with the sun are all helped by a well designed mounting bracket system. For homes with irregular roof lines or complex geometry, adjustable brackets simplify alignment and help keep panels level. Regardless of roof type, ensure brackets provide sufficient support to resist wind uplift and that the fasteners engage solid sheathing or a structural subframe. The solar panel mounting bracket plays a central role in translating roof geometry into a solid mounting plan.

Correct sizing and weight considerations

Sizing a solar panel mounting bracket correctly means matching the bracket class to the panel weight, the mounting surface, and the local climate. Larger or heavier modules typically require brackets with higher load ratings and robust connection points to the rails. Corrosion resistance, coating thickness, and the number of fasteners influence long term performance and safety.

Wind uplift is a common concern in many regions, and the bracket system should be designed to withstand expected forces without letting panels shift. While exact numbers vary by climate and building code, a proactive approach is to choose a bracket system with a track or clamp design that distributes stress evenly across the mounting surface. Always verify that the bracket layout aligns with structural members and that roof penetrations are sealed correctly to prevent leaks. A well chosen solar panel mounting bracket reduces movement and simplifies maintenance.

Installation steps and safety precautions

Installing a solar panel mounting bracket involves careful planning, proper tools, and attention to safety. Begin by reviewing the roof structure, selecting a bracket type compatible with your panels, and gathering the required fasteners and seals. Then lay out the rail or bracket positions on the roof to ensure straight rows and correct tilt.

Secure the brackets to the underlying structure using appropriate fasteners and verify that all connections are tight without over tightening. Install mounting rails if used, then place panels on the rails and attach them with the appropriate clamps or bolts. Use weather resistant sealant at any penetration points and follow local codes. Throughout the process, wear fall protection gear, keep the work area organized, and avoid working on wet or icy surfaces. If you are unsure about any step, consider hiring a licensed installer or consulting with the mounting bracket manufacturer for guidance. A solar panel mounting bracket system is only as secure as its installation.

Maintenance, inspection, and warranty considerations

A mounting bracket should be inspected periodically for signs of corrosion, loose fasteners, or movement of the panels. Check seals around penetrations and verify that rails and clamps remain properly aligned after severe weather. Clean any accumulated debris that could trap moisture or grit against the bracket.

Warranty coverage varies by manufacturer and installation method, so read the terms carefully. Some brackets come with warranties that cover corrosion performance, while others focus on structural integrity. Proper maintenance can help preserve warranty eligibility, but always document inspections and repairs. Keeping a detailed record supports future resale and helps ensure continued performance over the life of the solar array.

A well maintained solar panel mounting bracket contributes to long term reliability and is essential in meeting warranty expectations.

Cost factors and budgeting for mounting brackets

Pricing for solar panel mounting brackets depends on material, finish, and system complexity. Entry level brackets made from basic aluminum offer solid performance at lower cost, while heavy duty stainless steel or specialty non penetrating mounts command higher prices but can deliver longer life in challenging climates. Rails, clamps, and sealants add to the total, and installation hardware such as corrosion resistant bolts and gaskets also influences the budget.

When budgeting, consider not only the bracket hardware but also the labor cost if you hire a professional installer. The overall system cost is influenced by roof type, panel count, and the need for roof penetrations or clips. For some homeowners, choosing a modular bracket system that allows future expansion can reduce long term costs and maintenance headaches. A solar panel mounting bracket is a long term investment that can affect both performance and maintenance needs.

Choosing the right solar panel mounting bracket for your project

To choose the right bracket, start with your roof type and climate, then evaluate panel size and frame compatibility. Consider whether you need a fixed or adjustable system, and whether non penetrating or through roof mounting is preferable for your home. Check compatibility with mounting rails, clamps, and weather sealing options.

Local codes and warranty requirements should guide your choice, as some jurisdictions require specific mounting methods or wind resistance ratings. Look for brackets with corrosion resistant coatings and tested fastener sets that match your panel frames. Finally, weigh maintenance access and cleaning ease, since the bracket influences how easily you can service the array over time.

Quick-start checklist for DIY mounting brackets

• Confirm roof structure and roof type before selecting brackets
• Choose a bracket system compatible with your panels and rails
• Decide between fixed or adjustable mounting and choose the appropriate tilt angle
• Gather weather resistant fasteners, seals, and ladders or fall protection gear
• Seal penetrations properly and follow local building codes
• Plan for future access and cleaning while spacing panels correctly
• Inspect the brackets after installation and schedule periodic checks for corrosion or loosening
