Unistrut Solar Panel Mounts: A Practical Guide for Installations
Learn how unistrut solar panel mounts work, their advantages, selection tips, installation considerations, and how they compare with other mounting options for reliable rooftop solar systems.

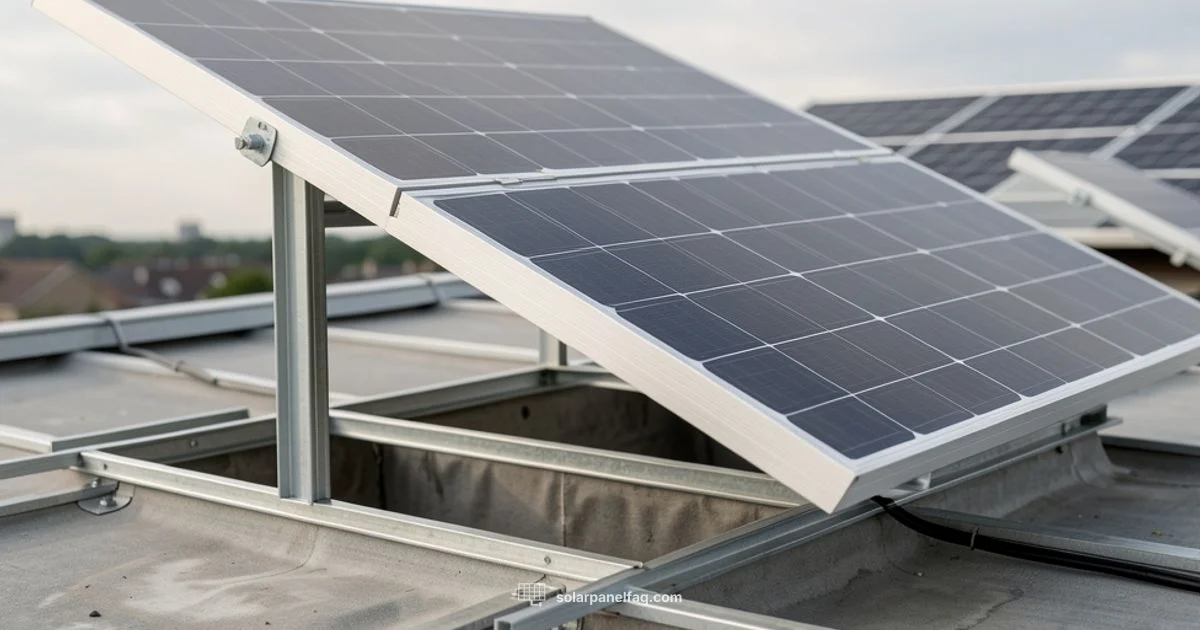

A unistrut solar panel mount is a modular channel-based mounting system that uses Unistrut rails to securely attach solar panels to roofs or structures.
What is a unistrut solar panel mount and how does it work?
According to Solar Panel FAQ, a unistrut solar panel mount is a modular channel-based mounting system that uses Unistrut rails to securely attach solar panels to roofs or structures. This approach offers flexibility for retrofit projects and new builds because rails, brackets, and clamps can be configured to fit many roof geometries. At its core, the system relies on slotted metal channels, cross members, and clamps to create a rigid frame that keeps panels aligned and evenly spaced. Adjustable feet and mounting brackets let you tailor tilt, spacing, and orientation without major roof modifications. When installed correctly, unistrut mounts distribute weight along supporting members, help manage wind uplift, and allow future expansions. The planning phase matters most: assess roof area, select appropriate channel lengths, and choose fittings that match panel dimensions. While hardware can vary by manufacturer, the core idea remains the same: a modular rail network provides a versatile, upgradeable foundation for PV arrays on many roof types.
Key advantages of unistrut mounting systems
Unistrut mounting systems bring a range of practical benefits for homeowners and Solar Panel FAQ readers. First, they offer remarkable flexibility: you can reconfigure layouts, add more panels later, or swap devices without replacing large sections of the roof frame. Second, they are compatible with multiple roof types, including metal, tile, and shingle roofs, thanks to a variety of feet, hooks, and clamp options. Third, supply chains for channel systems are widespread, which can ease procurement and maintenance. Fourth, the modular nature supports efficient weight distribution and easier future expansion. Fifth, the system is generally durable when installed with proper coatings and corrosion-resistant hardware. Finally, maintenance and upgrades tend to be more straightforward, because components are standardized and interchangeable, reducing long-term service downtime.
How to choose the right unistrut mount for your roof
Selecting the right unistrut mount begins with a clear assessment of your roof and project goals. Consider roof type (flat, pitched, metal, tile, or shingle), the expected load, climate and wind conditions, and desired panel layout. Measure available roof area and determine how many rows of panels you want, then match the channel length and cross member spacing to those dimensions. Choose feet or clip types suitable for your substrate and consider non-penetrating options for sensitive roofs or HOA restrictions. For tile roofs, plan for standoffs or tile hooks to avoid cracking; for metal roofs, compatible clip-on feet are often preferred. Finally, verify compatibility with your solar panels' dimensions, including width, length, and edge clearance, and ensure the hardware is rated for outdoor exposure. This approach helps ensure a balanced, code-compliant installation that can adapt to expansion or reconfiguration in the future.
Installation considerations and best practices
Preparation is everything when installing a unistrut solar panel mount. Establish a layout that aligns with rafter centers or structural members and mark anchor points carefully. Use corrosion-resistant hardware and appropriate weatherproof seals where fasteners pass through the roof or flashing. Maintain consistent spacing between panels to avoid shading and ensure clean water runoff across the array. When fastening channels, avoid overtightening which can deform components and compromise clamping force. Keep safety front and center: use fall protection, secure ladders, and follow local codes and manufacturer guidelines. Document the mounting scheme for future maintenance or reconfiguration. If in doubt about structural capacity or wind loads, consult a qualified installer or engineer to validate your design before proceeding.
Common configurations and real world setups
Most unistrut configurations arrange rails along the roof plane to create one or more parallel rows of panels. In flatter installations, long uninterrupted channel runs with mid and end clamps provide uniform support across the module field. For steeper roofs or higher wind zones, additional bracing or cross-members improve rigidity and reduce vibration. Real-world setups often adapt to roof penetrations like chimneys or vents by routing channels around obstacles or using offset brackets. For retrofits, modular components allow you to add a new string of panels as energy needs grow, without replacing the entire mounting framework. The result is a scalable system that maintains alignment, simplifies wiring, and keeps the array accessible for maintenance.
Maintenance, safety, and warranties
Maintenance for unistrut mounts is typically straightforward: perform periodic inspections for corrosion, loose fasteners, and sign of bending or deformation. Tighten hardware as recommended by the manufacturer and replace any weathered bolts or clips promptly. Check the flashing seals and drainage paths to prevent water intrusion and ice buildup in colder climates. Warranty terms vary by manufacturer and installation method, so keep records of component serials, installation dates, and inspection notes. If you notice excessive movement, rusting, or panel misalignment, pause operation and consult a professional. A well-maintained unistrut mounting system can provide reliable performance for many solar cycles, especially when proper coatings and protective finishes are used.
Frequently Asked Questions
What is a unistrut solar panel mount?
A unistrut solar panel mount is a modular channel-based mounting system that uses Unistrut rails to securely attach solar panels to roofs or structures. It provides adjustable, scalable support for a variety of roof types and panel configurations.
A unistrut solar panel mount is a flexible channel system that holds solar panels on roofs with adjustable rails.
Is a unistrut solar panel mount suitable for my roof type?
Yes, with the right feet, hooks, and bracing, unistrut mounts can be adapted to many roof types, including metal, tile, and shingle roofs. Consider roof structure, wind loads, and potential penetration requirements when choosing hardware.
Most roof types work with a unistrut mount if you pick the right accessories and follow load guidelines.
How does a unistrut mounting system compare to other mounting options?
Unistrut mounts offer high flexibility and expandability compared with fixed, non-modular systems. They can be easier to retrofit and adapt to new panel configurations but may require careful planning and potentially more hardware than some specialty mounts.
They are flexible and expandable, but may need more planning and hardware than non modular options.
What are the common installation steps for a unistrut solar panel mount?
Common steps include layout planning, selecting appropriate channel lengths, installing rails and clamps, attaching feet or clip-ons to the roof, mounting panels, and wiring. Always follow manufacturer instructions and local building codes.
Plan the layout, install rails and clamps, attach feet, mount the panels, then wire everything up after confirming weather safety.
Are there safety or warranty considerations I should know?
Yes. Use proper fall protection, verify roof integrity, and ensure watertight seals where penetrations occur. Warranty terms vary by brand and installation method, so keep documentation and consult a professional if needed.
Wear safety gear, ensure the roof is sealed, and check warranty terms with the manufacturer.
Can I install a unistrut solar panel mount myself or should I hire a pro?
DIY is possible for people with construction experience and the right safety measures, but a professional installer can ensure code compliance, load calculations, and optimal layouts. If in doubt, hire a pro.
You can do it if you have experience and follow safety rules, but a pro can help with code compliance and optimal results.
Top Takeaways
Quick maintenance schedule
- Inspect annually for corrosion and loose fasteners.
Design for expansion
- Use modular components to allow future panel additions.
Prioritize safety and codes
- Follow local codes and manufacturer guidelines for all work.
Warranty awareness
- Document installation details to support warranty claims.
