Can You Put Solar Panels on an RV? A Practical Guide
Learn how to install solar panels on an RV, size your system, choose components, mount safely, and maintain reliability for off-grid camping.
Yes—RV solar panels can be installed to power appliances and extend boondocking time, but success depends on sizing, roof type, and a compatible charging system. Start by assessing your daily energy use, then choose between rigid or flexible panels, a suitable charge controller (preferably MPPT), and a battery bank sized for your needs. Proper mounting and safety practices are essential.
RV solar feasibility: roofs, weight, and sun
According to Solar Panel FAQ, most RV roofs can accommodate a solar upgrade when you account for weight, mounting method, and roof geometry. The decision to install panels starts with three questions: Can the roof support the additional weight without compromising seal and structure? Is there a clear, unobstructed area for mounting that gets sunlight for most of the day? And can the electrical system be wired safely to charge batteries without overloading existing circuits? In practice, lightweight solar options and thoughtful mounting make rooftop systems viable for many RVs, but there are notable caveats: curved roofs reduce mounting options, old roofs may require reinforcement, and wind uplift must be addressed. This section helps you assess feasibility, set practical expectations, and plan for expansion if you later add more panels.
Types of RV solar setups: rigid vs flexible, fixed vs portable
RV solar setups come in several form factors. Rigid panels (glass-covered, framed) usually deliver higher efficiency and durability and mount on rails or a roof rack. Flexible panels are lighter and can contour to curved roof surfaces, which reduces weight but may suffer from long-term durability and adhesion issues. A common strategy is to use rigid panels as the primary energy source and reserve a flexible panel for hard-to-reach angles or to test lower-profile installations. When choosing, consider roof weight limits, mounting space, and compatibility with your RV’s roof material. For electronics, MPPT (maximum power point tracking) controllers extract more energy in variable sun and perform better in real-world RV conditions than PWM (pulse width modulation) controllers. Remember that expansion is easier with modular systems, so plan for future add-ons if desired.
System sizing: how to calculate daily energy needs
Begin with a thorough audit of all devices you intend to power. List each item, its wattage, and how many hours you expect to use it each day. Multiply wattage by hours to obtain daily watt-hours for each device, then sum these values for total daily energy. Compare this demand to the expected solar output from your panel array under typical sun, accounting for losses from wiring, the charge controller, and battery efficiency. It’s wise to overestimate a bit to handle cloudy days and seasonal variation. This sizing process determines how many panels you need, the size of the charge controller, and the required battery capacity to avoid deep discharge and prolonged recharge times.
Batteries and storage: choosing the right chemistry
Storage capacity is the heart of an off-grid setup. Lead-acid variants are common and affordable but heavier and require more maintenance. Lithium-based chemistries, especially LiFePO4, offer higher cycle life, deeper usable depth, and better efficiency, but come with higher upfront costs. In RV use, weight, space, and temperature tolerance matter. Design your battery bank to cover your daily needs with a buffer for several days of limited sun. If you expect frequent boondocking, a lithium system may be more cost-effective over the long term due to longer life and easier management.
Wiring, charge controllers, and safety basics
Plan a clean, safe wiring path from the panels to the charge controller, then to the battery bank and inverter if you use one. In RV installations, MPPT controllers usually maximize energy harvest in fluctuating sun and should be located in a cool, dry area. Use appropriately rated wiring and fuses close to the source, and protect cables with weatherproof conduits where they pass through the roof. If you use an inverter, size it for peak draw with a comfortable margin. Always disconnect sources before handling wiring and never work on a live system; safety is non-negotiable when dealing with high DC voltages.
Mounting options: roof mount vs portable and sealing
Roof mounting provides a stable, weatherproof solution but requires careful sealing and weight management. Use rails or brackets engineered for RV roofs and seal every penetration with marine-grade sealant to prevent leaks. For curved roofs or limited space, lower-profile mounts or partial mounting with a surface-adhered solution can work, but ensure the adhesive method is rated for outdoor, sun-exposed use. Portable or semi-portable setups offer flexibility for boondocking in diverse locations but may require more frequent setup and breakdown. Regardless of method, recheck seals after installation and periodically maintenance to maintain performance.
Boondocking strategy: energy management and monitoring
Efficient energy management becomes essential when you’re off-grid. Install a monitoring system that displays real-time state of charge, voltage, current, and daily energy production. Shade from trees or tall buildings can dramatically reduce output, so plan routes and sites with sun exposure in mind. Modular systems that allow you to add panels or batteries later give you room to grow as your energy needs change. Pair your solar with good energy habits like using a programmable thermostat and LED lighting to maximize daily autonomy.
Common mistakes to avoid
Common mistakes include underestimating energy use, under-sizing the charge controller, and failing to account for temperature effects on battery performance. Wiring errors, insufficient fusing, and poor roof sealing can lead to costly repairs and leaks. Another frequent issue is incompatibility with the RV’s converter or shore power; always verify that the solar charging system plays nicely with the coach’s electrical architecture. Take a conservative approach to initial sizing and test thoroughly before relying on the system for critical loads.
Maintenance and warranties: keeping the system healthy
Regular maintenance helps protect your investment. Clean panels to remove dust and debris that block light, inspect wiring and connections for corrosion, and check seals around roof penetrations. Track system performance over time to detect early signs of degradation. Keep installation manuals and warranty documents in your RV records; verify whether service bulletins or recalls affect your kit. A well-maintained system not only performs better but also lasts longer.
Tools & Materials
- RV solar panels (rigid or flexible)(Choose based on roof type and weight limits; consider panel efficiency and warranty)
- Charge controller (MPPT preferred)(Select a controller that matches your panel amperage and battery voltage)
- Battery bank (LiFePO4 or AGM)(Size to daily needs with a comfortable depth of discharge)
- Inverter (pure sine wave)(Needed if you operate AC appliances away from shore power)
- Mounting rails and hardware(Rooftop rails, brackets, screws, and sealant compatible with RV roof material)
- Weatherproof conduit and exterior wiring(Protects wires from UV, heat, and road debris)
- DC disconnects and fuses(Place near the source; follow local electrical codes)
- MC4 connectors and extender cables(Ensure weatherproof connections and strain relief)
- Multimeter / voltmeter(For voltage and continuity checks during install)
- Sealant and roof-safe sealant gun(Marine-grade sealant recommended for leaks prevention)
- Insulation tape and cable clips(Secures wiring along the roof and internal pathways)

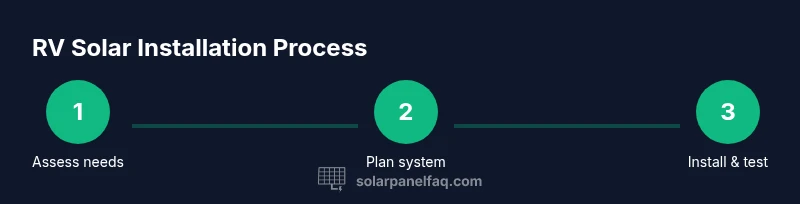

Steps
Estimated time: 2-6 hours
- 1
Assess energy needs and site constraints
List all devices you plan to run and estimate daily energy use. Consider peak loads like air conditioning and heating, and account for seasonal variances. This step informs panel count, battery size, and controller rating.
Tip: Document typical daily loads and expected boondocking duration to avoid oversizing or undersizing. - 2
Design a modular system plan
Choose between rigid and flexible panels, decide on peak wattage goals, and pick an MPPT controller that supports the planned array and battery chemistry. Plan for future expansion if needed.
Tip: Keep future expandability in mind; select components that can scale without a full retrofit. - 3
Gather components and verify compatibility
Purchase panels, a compatible MPPT controller, battery bank, and wiring that match voltage levels. Check that the controller’s input current and voltage align with your panel array and battery specs.
Tip: Double-check manufacturer manuals for tool-free wiring compatibility and temperature ratings. - 4
Prepare mounting surfaces on the roof
Inspect the roof for damage, clean the surface, and locate safe mounting locations away from vents. Plan routing paths for cables to minimize exposure and avoid sharp edges.
Tip: Test-fit panels temporarily to confirm clearance before permanent mounting. - 5
Mount panels and route wiring
Attach rails or mounts to the roof, secure panels, and run cables through weatherproof conduits. Keep conductors neatly organized with strain reliefs and grommets.
Tip: Use sealant at all penetrations and test seal integrity after installation. - 6
Connect controller, battery, and optional inverter
Wire panels to the controller first, then connect the controller to the battery bank, and finally wire the inverter if used. Verify polarity and secure all connections with appropriate fuses.
Tip: Power down all components before wiring; confirm voltage readings after connections. - 7
Test operation and document
Power on the system, monitor voltages, and ensure the controller shows charging activity. Test representative loads and confirm safe operation in both day and night scenarios.
Tip: Keep a log of performance metrics for future upgrades or troubleshooting.
Frequently Asked Questions
Can I install RV solar panels myself, or should I hire a professional?
Both options are viable. A knowledgeable DIY installer can do a clean, safe job if you follow electrical safety rules and manufacturer instructions. For complex systems, large battery banks, or integration with the RV’s converter, professional installation might reduce risk and ensure compliance.
You can install it yourself if you follow safety rules and instructions; for complex setups, consider a professional installer.
Will RV solar panels work while I’m driving?
Solar panels can continue to generate power while you drive, but output depends on sun exposure and panel orientation. Visibility may be reduced by shading and roof features. For steady power, maintain a suitable battery bank and consider a controller that can handle the variable input.
Panels can produce energy while you drive, but performance varies with sun and shade.
How do I decide the right system size for boondocking?
Base sizing on your daily energy needs and desired autonomy. Use a detailed energy audit, select panels and a controller that can meet the daily load, and choose a battery bank with enough capacity to cover several cloudy days if needed.
Size based on daily energy needs and desired off-grid time, with a buffer for cloudy days.
Are flexible solar panels better for an RV roof?
Flexible panels are lighter and can suit curved roofs but may offer lower long-term durability and efficiency compared to rigid panels. They’re great for tight spaces or when weight is a critical concern, but consider trade-offs in durability and warranties.
Flexible panels are lighter and work well on curved roofs, but may be less durable than rigid options.
Do I need a battery for RV solar power?
Yes. A battery bank stores energy for nighttime use and cloudy days. Lithium-based options provide more cycles and deeper discharge tolerance, but require higher upfront cost and proper battery management.
A battery bank is essential for off-grid power; lithium batteries offer durability but cost a bit more.
What maintenance is required for RV solar systems?
Regular cleaning of panels, inspection of wiring and seals, and periodic testing of the charging system are typical maintenance tasks. Keep warranties and installation records, and watch for performance changes that indicate aging components.
Clean panels and inspect connections regularly; monitor performance for signs of aging.
Watch Video
Top Takeaways
- Assess roof limits and sun exposure before purchasing.
- Size the system using real daily energy needs, not guesses.
- Prefer MPPT controllers for better efficiency in RV settings.
- Choose battery chemistry that balances weight, cost, and cycles.
- Prioritize sealing and safety in all wiring and mounts.
