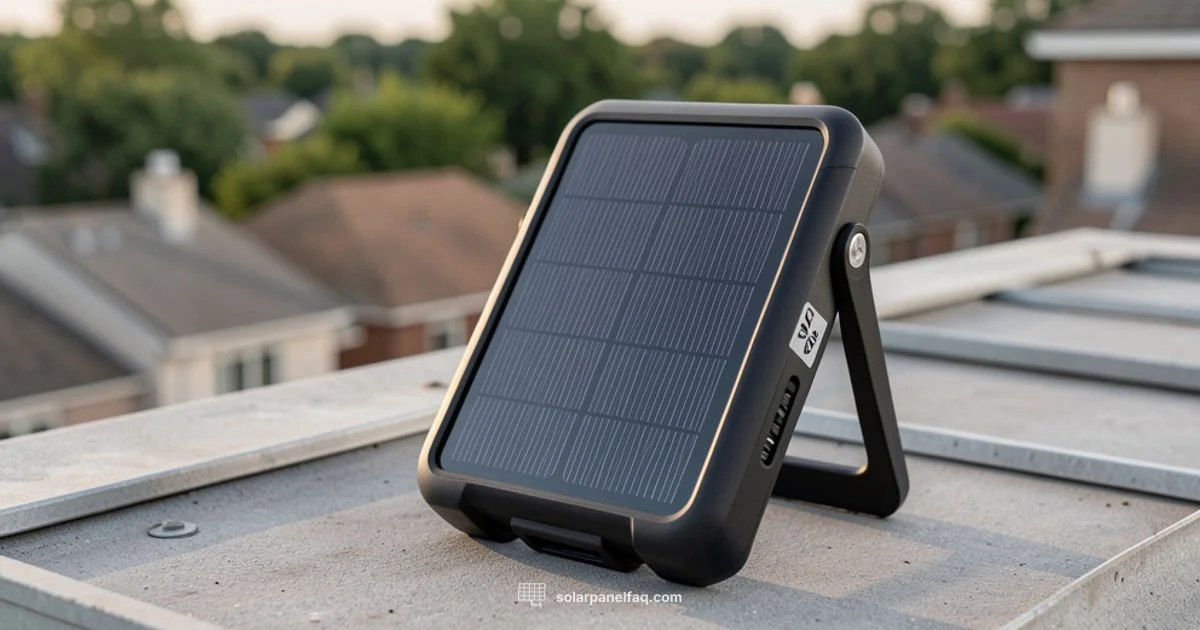

Yale Solar Panel Charger: A Practical Guide for Homeowners
Explore how the Yale solar panel charger works, how to choose, install, maintain, and maximize efficiency for your home solar system.
A Yale solar panel charger is a device that regulates charging from solar panels to batteries or devices, improving safety and efficiency.
What a Yale Solar Panel Charger Does
A Yale solar panel charger is a compact regulation device placed between your solar array and the energy storage system or appliances you want to power. Its main job is to manage the flow of electricity, ensuring voltage and current stay within safe limits while maximizing usable energy. In practical terms, it protects batteries from overcharging, reduces the risk of electrical faults, and helps you extract more energy from the sun on cloudy days or during peak sun hours. For homeowners, this means better battery health, longer equipment life, and a smoother experience switching between grid power and solar power. The Yale charger works with common battery chemistries and a range of panel configurations, making it a flexible component for retrofits and new solar installations alike. When paired with a compatible inverter or storage system, it becomes a central hub that coordinates charging across devices and storage, supporting a more autonomous home energy setup.
Key Technologies Behind Efficient Charging
Charging efficiency in Yale devices hinges on two main approaches: Maximum Power Point Tracking (MPPT) regulation and, in simpler models, Pulse Width Modulation (PWM). MPPT regulators continuously adjust output to harvest the most power your panels can deliver under changing light and temperature, which is especially helpful on partly cloudy days or when panel voltage varies. PWM regulators, though typically more affordable, regulate current more directly and can be less efficient when panel voltage is high relative to the battery. Temperature compensation helps prevent battery damage in hot climates by adjusting charging current as the battery heats up. Common safety features include overcharge protection, short-circuit protection, reverse polarity safeguards, and automatic shutdown if fault conditions are detected. Some Yale chargers offer optional smart features that communicate with inverters or home automation systems to optimize overall energy flow.
Compatibility: Panels, Batteries, and Inverters
A charger’s value comes from its ability to work with your existing solar hardware. Check input voltage range to ensure it matches your panel array voltage and verify that the output current aligns with your storage system’s charging needs. Battery chemistries commonly supported include lead-acid and various lithium-based options; however, always confirm supported chemistries in the product specs. Inverter compatibility matters too, because some systems rely on inverters that respond to charger signals or require specific communication protocols. If you plan a retrofit, map your system’s voltage and capacity first, then select a Yale charger that can supply adequate current without exceeding battery or inverter ratings. Right-sized charging prevents bottlenecks and extends overall system life.
Reading the Specifications: What to Look For
When comparing Yale solar panel chargers, focus on key specifications. Identify the input voltage range to match your solar array, the maximum output current to suit your storage, and the claimed efficiency under typical operating conditions. Look for protections such as overcharge, overcurrent, and short-circuit safeguards, along with a sensible operating temperature range. Certifications like UL or CE can indicate tested reliability, while warranty length signals long-term support. If available, data on operating modes, such as MPPT versus PWM, helps you estimate real-world performance. Finally, consider any smart features, like status indicators or app connectivity, which simplify monitoring and troubleshooting.
Installation Basics and Safety Considerations
Professional installation is recommended for most Yale solar panel chargers, especially when integrating with high-voltage solar arrays, batteries, or complex inverters. A licensed electrician can ensure proper wiring with correct gauge cables, appropriate fusing, and robust grounding. Plan the layout so the charger sits in a dry, ventilated area near the storage or inverter, with short, clean runs to minimize voltage drop. Follow manufacturer mounting guidelines to avoid moisture intrusion and overheating. Adhere to local codes and permit requirements, and verify that any rooftop or overhead wiring is secured against wind or weather exposure. Finally, keep a maintenance schedule that includes periodic inspections for loose connections and signs of corrosion.
Maintenance, Troubleshooting, and Longevity
Maintenance is largely about keeping connections clean and secure. Periodically inspect input and output cables for wear, clean dust or debris from vent openings (if applicable), and check for firmware updates if the charger supports them. Troubleshooting commonly involves verifying panel voltage, checking battery health, and confirming wiring continuity. If the charger refuses to start or shows fault indicators, consult the manual and consider professional service. Proper mounting, cooling, and avoiding overloading the charger by exceeding its rated output all contribute to longer service life and more reliable performance.
Costs, Warranty, and ROI Considerations
Costs for Yale solar panel chargers vary with features, capacity, and build quality, and are influenced by the broader market for solar components. Look for a reasonable warranty period that covers both hardware and performance under typical conditions. ROI depends on several factors, including your local sun hours, overall system size, energy rates, and how often you rely on stored solar power versus grid power. In many cases, a charger that enables deeper cycle usage of batteries or smoother day-to-day shade management yields faster payback through energy savings and extended battery life.
Choosing the Yale Charger for Your Home Type
Different homes benefit from different charger configurations. A roof-mounted system with a larger array may benefit from a higher current rating to exploit peak sun hours, while a small or modular system can use a compact charger with modest output. If you use off-grid storage or plan to create a hybrid system, verify that the charger integrates cleanly with your inverter and battery bank. For homes with smart meters, look for features that support monitoring and data sharing with energy apps. Finally, consider future expansion; selecting a charger with scalable current and compatibility can save you from reconfiguring the setup later.
Practical Scenarios: Real World Use Cases
In a typical single family home with a mid-size solar array, a Yale solar panel charger helps safely direct excess sun energy into a battery bank for evening use. In a smaller cabin or workshop, it can support independent operation off-grid during sunny days, reducing reliance on the main grid. For homes experimenting with smart home energy, integrated monitoring features enable better load management and proactive maintenance cues. Across these scenarios, the charger acts as a bridge between generation, storage, and consumption, enabling more predictable energy behavior and a smoother transition between energy sources.
Frequently Asked Questions
What is the primary function of a Yale solar panel charger?
The charger regulates charging from solar panels to batteries or devices, protecting against overcharging and optimizing energy use. It coordinates energy flow to improve safety and efficiency in your solar setup.
The charger controls how solar energy charges your storage or devices, keeping everything safe and efficient.
Is professional installation recommended for Yale solar panel chargers?
Yes. A qualified electrician can ensure correct wiring, protective measures, and code compliance, especially when integrating with high voltage panels and storage systems.
Yes. A licensed electrician is recommended to ensure safe, code-compliant installation.
Can Yale solar panel chargers work with different battery chemistries?
Most Yale chargers support common chemistries such as lead-acid and lithium-based batteries. Always check the specific model’s listed compatibility before purchase.
Most models support common battery types, but verify compatibility for your setup.
What maintenance is required for Yale solar panel chargers?
Regular inspections of connections, cleaning of dust or debris, and periodic checks for signs of wear help keep performance steady. Update firmware if supported.
Keep connections clean and check for wear; update firmware if available.
Does using a Yale charger affect energy savings?
Yes, by optimizing how solar energy is stored and used, it can reduce grid electricity needs and improve overall system efficiency when paired with a suitable storage solution.
Yes, it can boost savings by improving how solar energy is stored and used.
Are Yale chargers suitable for off grid homes?
Many models work with off-grid setups, but you should verify battery and inverter compatibility and ensure the charger can handle your system’s load and voltage.
They can work off grid, but check compatibility with your battery and inverter.
Top Takeaways
- Start with a proper assessment of your solar setup before buying.
- Choose MPPT for variable sunlight; PWM for budget-friendly basics.
- Verify compatibility with your panels, batteries, and inverter.
- Prioritize safety features and certifications when evaluating models.
- Plan for professional installation and ongoing maintenance.
