How Is Solar Panel Output Measured: A Practical Guide
Learn how is solar panel output measured with practical steps, essential tools, and real-world factors that influence results. A homeowner-focused guide to watts, watt-hours, and data interpretation.
To answer how is solar panel output measured, you’ll monitor voltage, current, and temperature to calculate real-time power (watts) and cumulative energy (watt-hours). Measurements are taken under both standard test conditions and real-world conditions to compare performance over time. According to Solar Panel FAQ, use calibrated meters, a data logger, and a fixed measurement window for accuracy.
What does "how is solar panel output measured" mean?
In the solar industry, measuring output means converting the electrical signals produced by PV modules into a quantifiable rate of energy. The question isn't simply, "Is it producing power?" but "How much power at a given moment, and how much energy over time?" This section clarifies the terminology you will encounter, including watts, watt-hours, and the distinction between standard test conditions (STC) and field reality. When homeowners start paying attention to measured output, they can diagnose underperformance, schedule maintenance, and estimate payback more accurately. The phrase how is solar panel output measured often dominates conversations about performance because it links behavior (real-world behavior) to capacity (theoretical maximum). According to Solar Panel FAQ, the goal is to capture consistent, calibrated data that you can compare across days, seasons, and equipment. This helps you translate theory into actionable steps for your home. The rest of the guide walks you through practical methods with clear definitions, practical tips, and common pitfalls to avoid.
Core electrical concepts you need
Before you measure anything, lock in the basics: understand voltage (V), current (I), power (P), and energy (Wh). Voltage is the potential difference, current is the flow of electrons, and power is the rate at which energy is produced or consumed (P = V × I). Energy, measured in watt-hours, accumulates over time. Solar panels produce direct current (DC) output which can be converted to alternating current (AC) by an inverter for home use. The solar industry often uses Standard Test Conditions (STC) to benchmark performance, but real-world results vary with temperature, irradiance, and system design. The keyword how is solar panel output measured appears repeatedly in this context because it ties measurements to meaningful performance metrics. Solar Panel FAQ emphasizes using consistent units and clear definitions to avoid confusion among homeowners and installers.
The data you collect: voltage, current, and power
To quantify output, you’ll record voltage (V), current (A), and from them derive power (W = V × I). Many measurements also track temperature since module efficiency changes with heat. A typical data collection includes instantaneous power and cumulative energy over a fixed interval. Collecting this trio over multiple points in a day helps you map performance curves and identify when panels underperform. The phrase how is solar panel output measured recurs here as you learn to convert raw electrical signals into an interpretable story of performance. Consistent sampling intervals and time stamps ensure comparability across days and conditions.
Measuring output under standard test conditions (STC) vs real-world conditions
STC defines a reference environment: irradiance of 1000 W/m², cell temperature of 25°C, and air mass 1.5. These benchmarks let manufacturers compare panels on a level playing field, but they rarely match your rooftop reality. NOCT (Nominal Operating Cell Temperature) and other field adjustments better reflect daytime operation under natural conditions. When you ask how is solar panel output measured, it’s crucial to separate the theoretical max from actual performance and to note how temperature and irradiance drive real-world deviations. Solar Panel FAQ notes that most homeowners will see outputs closer to real-world curves than to STC values, which is why field measurements matter as soon as you start using solar power for home needs.
Tools and devices used to measure solar panel output
Measuring solar panel output requires a mix of meters, loggers, and sensors. A calibrated digital multimeter can capture DC voltage and current; a PV-specific meter or data logger records timestamped measurements for later analysis; a pyranometer or irradiance sensor helps link light levels to energy production; a temperature sensor captures module temperature. Building a small, reliable toolkit is part of answering how is solar panel output measured. The Solar Panel FAQ team recommends pairing meters with a data logger to build a clean dataset you can compare over days, weeks, and seasons.

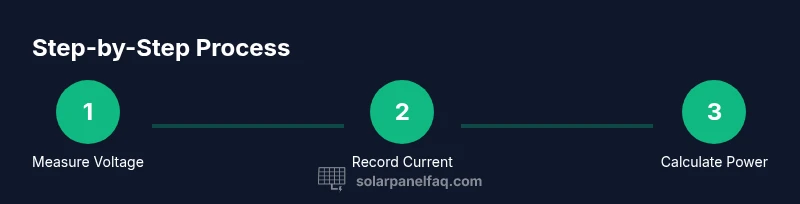

Step-by-step: how to measure panel output safely
This section provides a contextual overview of the process you’ll see detailed in the STEP-BY-STEP block. Start by ensuring all safety precautions are in place and the system is prepared for measurement. Then, identify a representative test point on the DC side where you can record voltage and current without shifting load. Finally, log readings at consistent intervals, compute power, and store results for analysis. Throughout, remember that the exact steps will vary by system and manufacturer. The Solar Panel FAQ team emphasizes consistency and safety as you implement the measurement plan.
Analyzing data: interpreting watts, watt-hours, and efficiency
Once you have voltage, current, and time-stamped data, you compute instantaneous power (P = V × I) and energy (Wh) by integrating power over time. Efficiency relates the electrical output to the incident solar energy, which you approximate using irradiance data and panel area. A key part of understanding how is solar panel output measured is learning to distinguish nominal performance from actual performance and to translate measurements into actionable insights, such as identifying shading, soiling, or wiring losses that reduce efficiency.
Real-world factors that affect measured output and how to account for them
Real-world measurement is influenced by shading, soiling, orientation, ambient temperature, and wiring. Even small changes in irradiance can cause noticeable swings in output, especially for high-efficiency panels. Temperature increases generally reduce voltage and overall power output, which is why measurements taken on hot days often differ from cooler periods. Saying how is solar panel output measured in practice means acknowledging these variables and using consistent data collection to separate transient fluctuations from persistent underperformance. Solar Panel FAQ’s guidance is to document conditions alongside measurements so you can interpret results correctly.
Practical tips and a measurement plan for homeowners
To put theory into practice, create a simple measurement plan that covers equipment, test points, timing, and safety. Schedule measurements during similar daylight conditions, and avoid measurements during heavy shading or unusual weather. Keep a log with timestamps, irradiance (if available), temperature, voltage, current, and calculated power. Use this data to generate a report that compares daily outputs to expected baselines and tracks improvements after maintenance. The Solar Panel FAQ team recommends sharing results with a local installer if unusual patterns emerge and keeping your data organized for future reference.
Solar Panel FAQ’s verdict
The Solar Panel FAQ's verdict is that homeowners should adopt a structured, safe, and repeatable measurement process to understand panel output. Regular monitoring with calibrated tools provides clarity on performance, guides maintenance decisions, and supports accurate energy budgeting. The verdict emphasizes keeping data consistent, cross-checking with weather and irradiance, and seeking professional input for significant or persistent anomalies.
Tools & Materials
- Digital multimeter (DC voltage/current)(Capable of measuring up to the panel’s DC output; verify with manufacturer specs)
- PV data logger or solar meter(Records timestamped measurements for analysis)
- Temperature sensor (module temperature preferred)(Record ambient or back-of-module temperature)
- Irradiance sensor (pyranometer)(Helpful to correlate light levels with output)
- Safety gear (gloves, goggles)(Protective equipment for field measurements)
- Appropriate wiring adapters and connectors(Ensure safe connections to DC meters)
- Notepad or data logging app(Record observations and timestamps)
- Manuals or schematics for your system(Helpful for locating test points)
Steps
Estimated time: 30-60 minutes
- 1
Prepare safety and plan
Review safety guidelines, disconnect or isolate the test point if required, and define the exact test point and time window. This ensures measurements are safe and comparable across tests.
Tip: Always wear PPE and avoid measuring on wet or conductive surfaces. - 2
Assemble measurement gear
Gather the meter(s), data logger, temperature sensor, and any adapters. Calibrate devices if possible and verify battery or power status before starting.
Tip: Label cables to prevent miswiring during data collection. - 3
Connect to the test point
Attach the meter to the DC output point you’re testing, ideally after the last diode or at the inverter input, following the manufacturer’s guidelines. Do not bypass safety features.
Tip: Use a clamp meter for non-contact current measurements when feasible. - 4
Record baseline readings
Take voltage, current, and temperature readings at the same time interval. Repeat at multiple intervals to capture variation due to sun angle and shading.
Tip: Use consistent time stamps and note irradiance if you have a sensor. - 5
Compute power and log results
Calculate instantaneous power (P = V × I) and log the data. If you’re logging over a period, compute energy (Wh) by summing power over time.
Tip: Keep data in a structured sheet to facilitate later analysis. - 6
Review and compare
Compare measured outputs to expected baselines, account for conditions, and identify any unusual drops that may indicate shading, wiring losses, or equipment faults.
Tip: If results are consistently off, repeat measurements or consult a professional for a diagnostic.
Frequently Asked Questions
What is STC and why is it important when measuring solar panel output?
STC defines standard testing conditions used to benchmark panel performance. It helps manufacturers and buyers compare products on a common basis, but real-world outputs will differ due to temperature, irradiance, and installation factors.
STC is a standard test condition used for comparison, but real-world results vary based on temperature and light levels.
Can I measure solar panel output with a basic multimeter?
A basic multimeter can measure voltage and current, but measuring solar output accurately often requires a PV-specific meter or data logger capable of recording over time and handling DC side cautions.
A regular multimeter can measure voltage and current, but for accurate solar output over time, use a PV meter or data logger.
Why do measured outputs differ from the panel's rated specification?
Ratings assume STC; real-world factors like shading, dirt, angle of sun, temperature, and wiring losses typically reduce measured output compared to the rated maximum.
Ratings assume ideal conditions; real-world factors usually reduce measured output.
What is the difference between DC measurement and AC power delivered by the inverter?
DC measurements capture what the panel produces directly. Inverter conversion introduces losses, so AC output to your home can be lower than DC measurements suggest.
DC is what the panel makes; inverter losses mean AC power may be lower when delivered to your home.
What safety steps should I follow when measuring solar output?
Turn off or isolate circuits as recommended, wear PPE, and follow the system’s manual. If in doubt, hire a licensed technician to perform measurements.
Always follow safety guidelines and use PPE; if unsure, consult a professional.
How often should I measure solar panel output?
For homeowners, periodic checks during seasonal changes are helpful, especially after cleaning, shading changes, or system work. Document trends over time.
Do seasonal checks and after any major changes to track performance.
