How Solar Panels Charge Batteries: A Practical Guide
Learn how solar panels charge batteries, how to size components, and how to safely wire a solar charging system for home use. Covers panels, controllers, batteries, safety, and maintenance for homeowners and solar buyers.

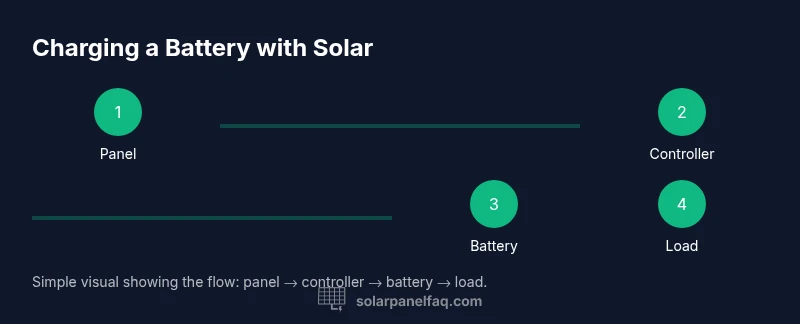

You can charge a battery with a solar panel by routing the panel through a charge controller to prevent overcharging. The key variables are panel wattage, battery voltage, and the charge controller type. The basic flow is simple: sunlight powers the panel to generate DC power, the controller regulates voltage and current, and the battery stores energy for later use.
Why solar charging works
According to Solar Panel FAQ, charging a battery with solar energy is a practical and reliable way to store daytime power for nighttime use. Photovoltaic cells convert sunlight into direct current (DC) electricity, which can be captured by a solar panel and directed toward a storage device. To charge safely, the DC power must be regulated. A charge controller sits between the panel and the battery, moderating voltage and current to prevent overcharging, excessive heat, and potential damage. The overall efficiency depends on sun exposure, panel orientation, temperature, and the compatibility of all components. You will often see discussions about MPPT versus PWM controllers, which describe different methods of maximizing energy capture under varying conditions. In most home setups, a properly matched system can provide a steady stream of stored energy for essential loads.
Basic system architecture: panel, controller, battery, and load
A solar charging setup typically includes four core components: the panel, a charge controller, a battery, and the load (devices powered by the battery). The panel generates DC electricity from sunlight. The controller protects the battery by regulating the charging voltage and current. The battery stores energy for later use, especially when the sun isn’t shining, and the load draws power from the battery. Wiring and safety devices ensure current flows correctly and safely. This architecture works across 12V, 24V, or higher-voltage configurations, with the exact wiring chosen based on system voltage and panel quantity.
Choosing the right panel and battery pairing
Selecting the right panel and battery pairing starts with your daily energy needs and available space. A larger panel can harvest more energy in sunny conditions, but you must ensure the charge controller and battery are sized to handle the input. Battery chemistry—whether lead-acid, AGM, or lithium—affects charging behavior, maintenance, and lifespan. In all cases, match the panel’s output to the battery’s voltage and choose a controller rated for the expected current. Remember that higher energy efficiency comes from good weather, proper cooling, and avoiding shading of panels for extended periods.
Wiring patterns: series vs parallel
Wiring panels in series increases the total voltage, while wiring in parallel increases the available current. The overall system voltage must align with the battery and controller specifications. Series configurations can reduce current, which minimizes voltage drop over long runs but requires a controller and battery that tolerate higher voltages. Parallel setups keep voltage at the battery level but raise current, needing thicker cables and a controller capable of handling higher current. Careful planning prevents misconfiguration that could damage components.
Charge controllers: MPPT vs PWM
MPPT (Maximum Power Point Tracking) controllers optimize energy harvest by converting higher panel voltages to the battery’s voltage, which can improve efficiency in mixed sunlight conditions. PWM (Pulse-Width Modulation) controllers are simpler and often cheaper, but they may waste energy when panel voltage differs from the battery voltage. For homes with variable sun or longer wiring runs, MPPT can offer tangible benefits. The right choice depends on budget, system size, and climate conditions.
Battery types: lead-acid vs lithium
Lead-acid batteries (including flooded and AGM variants) are generally lower-cost upfront and robust but require maintenance and careful charging to maximize life. Lithium-based batteries offer higher energy density, longer cycle life, and lighter weight, but come with higher upfront costs and more sophisticated management needs. Regardless of chemistry, proper charging voltages, temperature considerations, and a compatible controller are critical to battery health.
Sizing for your home usage and climate
To size a solar charging system, start with your daily energy needs and available sun. Estimate the energy use of essential loads in watt-hours per day, then translate that into a battery capacity and panel sizing that can meet demand with a buffer for cloudy days. Consider climate and seasonal sun variation—longer nights and winter clouds reduce daily production. A well-sized system provides steady energy storage while avoiding under- or over-charging.
Installation considerations and safety
Safety tops the list of any solar installation. Work with the system powered down and avoid wet or windy conditions on roofs. Use appropriate PPE, label and protect all conductors, and install fuses or breakers where required. Do not connect panels directly to a battery without a controller, and ensure proper grounding. If you’re unsure about wiring, insulation, or mounting, consult a qualified installer.
Maintenance and troubleshooting for longevity
Regular maintenance preserves performance. Keep panels clean and free from dust or snow which reduce output. Inspect wiring, connectors, and mounting hardware for corrosion or loosening, especially after extreme weather. If charging seems slow or unstable, check shading, panel alignment, controller settings, and battery health. Logging voltage and current over time can reveal trends and help plan replacements before failure.
AUTHORITY SOURCES
For foundational solar charging concepts, consult:
- https://www.energy.gov/eere/solar/solar-energy-basics
- https://www.nrel.gov/grid/solar-resource.html
- https://www.energy.gov/eere/solar/articles/solar-charge-controller-basics
Tools & Materials
- solar panel(s)(Match voltage to system design (12V/24V/48V) and consider total wattage for expected daily load.)
- charge controller(Choose MPPT for variable sun or longer runs; ensure rating matches panel current and system voltage.)
- battery(ies)(Select based on voltage and chemistry (lead-acid, AGM, or lithium) and planned depth of discharge.)
- DC wiring and connectors(Use appropriately rated, weatherproof cabling and correct gauge for current.)
- fuses/breakers(Place protective devices close to power sources to prevent damage.)
- multimeter or solar monitor(Useful for checking voltages, currents, and system health.)
- safety gear(Gloves, eye protection, and non-slip footwear for rooftop work.)
- mounting hardware(If mounting on a roof or rack, include brackets, fasteners, and sealant.)
Steps
Estimated time: 60-90 minutes
- 1
Assess system voltage and battery chemistry
Determine the operating voltage (12V/24V/48V) and choose battery chemistry before selecting panels and a controller. This alignment prevents mismatches and ensures safe operation.
Tip: Document your system specs from the start to guide component choices. - 2
Choose panel wattage and controller type
Choose a solar panel array that can meet daily energy needs and select a controller rated for the expected current and voltage. MPPT controllers are often preferred for efficiency in variable conditions.
Tip: Aim for a buffer between panel output and battery input to accommodate cloudy days. - 3
Mount panels and route wiring
Mount panels securely (on roof or ground), route wiring with weatherproof protection, and leave some slack for expansion. Keep panels angled to maximize sun exposure based on your latitude.
Tip: Avoid shading from trees or vents as it dramatically lowers output. - 4
Connect panels to the controller input
Connect the panel array to the controller input according to the manufacturer’s wiring diagram, ensuring correct polarity and secure connections.
Tip: Double-check that all connections are tight and free from corrosion. - 5
Connect controller to battery
Attach the controller’s battery output to the battery terminals, following the diagram and ensuring correct polarity. Use a fuse as recommended by the controller documentation.
Tip: Always connect the battery last to prevent arcing when energizing the system. - 6
Test and monitor charging behavior
Power up the system and observe charging indicators or a monitor. Confirm the battery voltage rises and the controller shows active charging.
Tip: Record initial readings to compare as the system ages. - 7
Safety and maintenance routine
Schedule periodic checks of wiring, connectors, and battery health. Keep panels clean and ensure weatherproofing remains intact.
Tip: Address any corrosion or looseness promptly to prevent failures.
Frequently Asked Questions
Can a solar panel charge a battery without a controller?
Technically a panel can generate voltage, but charging a battery without a regulator is unsafe and can damage the battery, controller electronics, or wiring. A controller manages voltage and prevents overcharging.
No. Always use a charge controller when charging a battery from a solar panel.
What happens if the battery is full?
The charge controller stops or reduces charging to prevent overcharging. Some systems permit a small float charge to maintain full state without stressing the battery.
If the battery is full, the controller maintains a safe float charge or stops charging.
Do I need to size for climate?
Yes. More sun in some climates means more energy; you may need fewer panels in sunny areas or more in cloudy, cooler regions to meet needs.
Yes—local climate affects how much energy your system can harvest.
Is MPPT better than PWM?
MPPT generally harvests more energy, especially with higher panel voltages or long cable runs. PWM is simpler and cheaper but less efficient in some conditions.
MPPT is usually the better choice for efficiency, particularly in critial setups.
Can a small panel charge a large battery?
A small panel can charge a large battery but slowly. The charging duration will be longer and you may need a larger or more efficient controller to optimize the rate.
Yes, but expect slow charging and plan for longer time to store required energy.
Watch Video
Top Takeaways
- Plan your system around voltage and chemistry.
- Match panel, controller, and battery ratings for safe charging.
- MPPT can improve efficiency in fluctuating sunlight.
- Regular maintenance protects performance and longevity.
