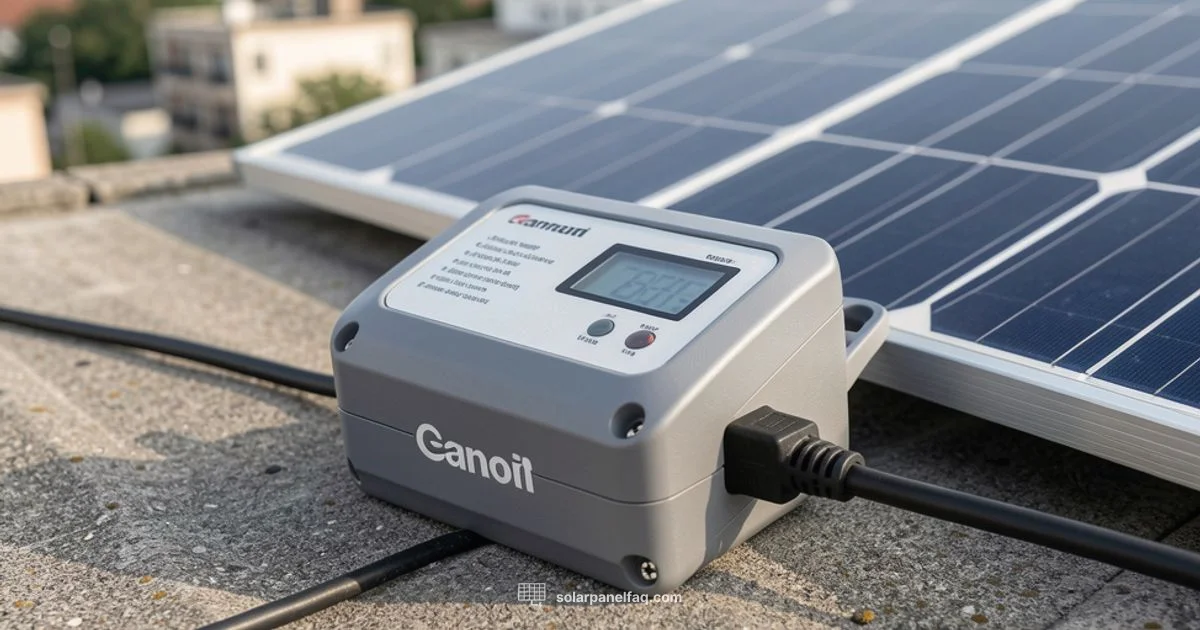

Solar Panel Charging Regulator: How It Works and Types
Learn what a solar panel charging regulator is, how PWM and MPPT regulators differ, and how to choose, install, and maintain the right regulator for efficient solar power and battery health.
Solar panel charging regulator is a type of charge controller that regulates the charging current from solar panels to a battery or energy storage system. It protects batteries from overcharging, manages voltage, and optimizes power flow under varying sun conditions.
What is a solar panel charging regulator and why it matters
A solar panel charging regulator is a critical component in any solar power setup that uses batteries or storage. It is a dedicated device that sits between the solar array and the battery bank, ensuring that the battery receives the right amount of current without risk of damage. By monitoring voltage and current, it prevents overcharging, adjusts charging as daylight conditions change, and helps maintain battery health over years of use. For homeowners, this means more reliable energy storage, longer battery life, and better consistency in power delivery, especially during cloudy days or rapidly changing weather. According to Solar Panel FAQ, selecting the right regulator is foundational to a safe and efficient solar system.
In practical terms, the regulator acts like a smart gatekeeper: it allows just enough energy to flow into the battery, and it will reduce or pause charging if the battery is full or approaching full. This control is especially important for lead acid and lithium batteries, which have different charging profiles and temperature sensitivities. A regulator also protects wiring and components by preventing excessive current and by providing a controlled path for charging energy. In DIY or professional installations, a well-chosen regulator is a key safeguard that reduces maintenance headaches and extends system life.
The bottom line is simple: without a solar charging regulator, your battery could overheat, degrade faster, or fail to accept power efficiently. With the right regulator, you gain a reliable, safe, and scalable way to store solar energy for use when the sun isn’t shining.
Frequently Asked Questions
What is a solar panel charging regulator and what does it do?
A solar panel charging regulator is a type of charge controller that manages how solar energy charges a battery. It protects against overcharging, regulates voltage, and optimizes energy flow from the panels to the storage system. It is essential for prolonging battery life and ensuring reliable power.
A solar panel charging regulator is a controller that safely manages how solar energy charges your battery, protecting it from overcharging and improving efficiency.
How is a solar panel charging regulator different from a traditional charge controller?
In most contexts the terms are used interchangeably, but a regulator emphasizes safeguarding the charging process and maintaining safe electrical parameters for the battery. A charge controller is the broader term that includes regulation features and protective functions.
Regulators focus on safe charging control, while charge controllers cover regulation plus protections; they are essentially the same family with emphasis differences.
Do I need a regulator for small off grid setups?
Yes. Even small off grid setups benefit from a regulator to protect the battery from overcharging and to optimize charging as solar input varies. It helps extend battery life and improves system reliability.
Even small off grid systems should use a regulator to protect batteries and optimize charging as sun conditions change.
Can PWM regulators be as effective as MPPT regulators?
PWM regulators are simple and cost effective for smaller systems, but MPPT regulators adapt better to changing light and can extract more energy from the same panel area, especially in partial shade or temperature variations.
PWM is cheaper and simpler, while MPPT often delivers more energy under varying conditions.
What should I look for when buying a regulator?
Look for battery type compatibility, voltage and current ranges, temperature compensation, efficiency, protection features, and a reputable warranty. Also verify compatibility with your solar panels and storage batteries.
Check battery compatibility, voltage and current ranges, temperature compensation, and warranty when buying.
Is it safe to install a regulator myself?
DIY installation is possible for simple systems if you follow the manufacturer’s instructions and observe safety guidelines, including proper grounding and fusing. If in doubt, hire a licensed electrician or solar installer.
You can install it yourself if you follow safety guidelines, but consider professional help for complex setups.
Top Takeaways
- Understand that a solar panel charging regulator is a type of charge controller between panels and batteries
- Choose between PWM and MPPT regulators based on system size, costs, and performance needs
- Prioritize battery compatibility and temperature compensation features when buying
- Install with proper fusing, secure wiring, and correct polarity for safety
- Regularly inspect connections and battery health to maximize regulator life
