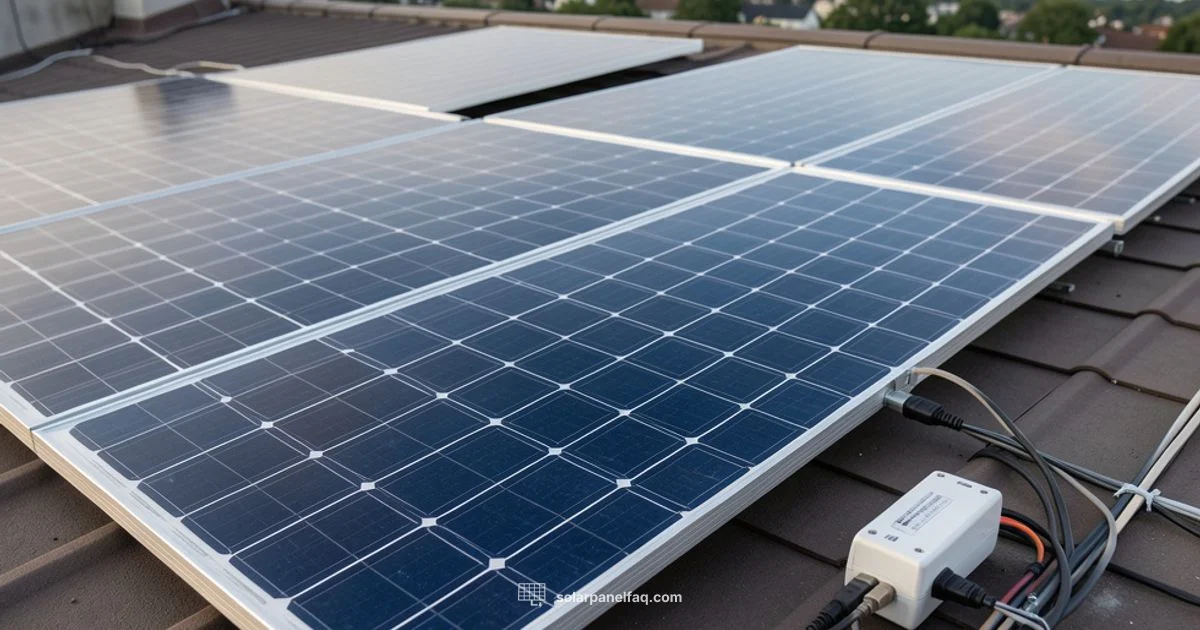

Solar Panel 24 Volt: A Practical Guide for Homeowners
Learn how a solar panel 24 volt system works, how to size components, and practical tips for home setups. This guide covers controllers, batteries, and installation considerations for reliable off grid and hybrid solar.
Solar panel 24 volt is a solar module configured to provide a nominal 24 volt DC output, forming part of a 24V solar power system used in off grid and hybrid installations.
What is a solar panel 24 volt and when is it used?
A solar panel 24 volt is a module designed to deliver power to a 24V DC system. In residential settings, 24V configurations are popular for off grid cabins, workshops, and hybrid homes that need longer cable runs and efficient energy transfer. Compared with a typical 12V setup, a 24V system uses higher voltage and lower current for the same power, which can reduce conductor losses and allow thinner cables for the same distance. The 24V standard is especially advantageous when you have a larger battery bank or when you plan to run mid sized appliances. This section explains where 24V shines and where it doesn't make sense, so you can decide if a 24V panel is right for your project.
How 24 volt panels are built and rated
Most 24V panels are designed to be wired in series within a string to reach a nominal 24 V output under standard testing conditions. They are rated by open circuit voltage (Voc) and maximum power voltage (Vmp), which determine how they perform in real-world conditions when matched with a 24V charge controller and battery bank. The important numbers are the Vmp which indicates the voltage at maximum power and the Voc which is the peak voltage without load. Temperature affects these values; as ambient temperature rises, Vmp and Voc shift. When you connect multiple 24V panels, the total voltage increases while total current remains the same; this must be balanced with the capabilities of your charge controller and wiring. Understanding these ratings helps in safe, efficient designs.
Matching 24 volt panels with charge controllers and batteries
To convert panel output into usable energy, you need a compatible charge controller. For 24V systems, MPPT (maximum power point tracking) controllers are commonly recommended because they optimize voltage and increase energy harvest, especially when panels are at the high end of the voltage range or when battery banks are large. You’ll typically pair 24V panels with a 24V or 48V battery bank, depending on your design. The battery chemistry matters too; sealed lead acid and lithium iron phosphate cells behave differently with charging voltages and float current. You'll want a controller capable of handling the current from your panel string and a battery bank sized to meet your loads. This alignment reduces energy losses and reduces wear on the system.
System design considerations: sizing wires, fuses, and safety
Designing a 24V system involves choosing conductor sizes that minimize voltage drop and prevent overheating. Use longer distances with thicker gauge wires, and install fuses near the battery bank to protect against shorts. DC wiring typically requires heavier guage than AC circuits for the same distance and current; plan for worst-case surge and a safety margin for continuous operation. Cable routing should avoid high heat sources and moisture; keep connections clean and tight. Grounding and compliance with local electrical codes are essential for safety and insurance coverage. A well-designed 24V setup balances panel count, string configuration, and controller rating so the system remains safe, reliable, and scalable as energy needs grow. This block has practical steps to keep your system safe.
Installation scenarios: off grid, hybrid, and RVs
A 24V solar panel configuration is common in off-grid cabins, tiny homes, and some RV setups where cable length or appliance load warrants higher voltage. In a hybrid home, you may combine solar with a generator or grid tie with a sizable battery bank. RV installations can benefit from 24V components due to efficient long cables and the ability to manage higher loads with fewer strings. When planning installation, assess roof shading, mounting options, and weather considerations. Always follow manufacturer instructions and local codes; professional installation is recommended for safety and warranty compliance. This section helps you visualize typical setups and the logistical differences between on-grid and off-grid applications.
Performance and environmental factors
Temperature, shading, and orientation influence 24V panels; shade on one cell reduces entire string performance. Since higher voltage panels reduce current, they are somewhat less sensitive to resistive losses in wiring but can be more sensitive to mismatch across panels. Sun angle, panel tilt, and roof orientation matter; the best performance occurs when panels face true south (or north in southern hemisphere) with minimal shading. For optimal results, place panels to maximize sun exposure during peak hours and protect against potential wind loads. Also note that mono-crystalline panels tend to have higher efficiency than polycrystalline; however, real-world performance depends on installation. This section explains how to interpret specs and predict daily energy generation in typical Northern or Southern Hemisphere climates.
Maintenance, shading, and longevity
Keep panels clean and free from heavy debris; even light shading can dramatically reduce output. Inspect mounting hardware, connectors, and cables for corrosion and wear at least annually. Check the inverter or charge controller display for faults; a well-maintained system lasts many years with occasional module replacement. For 24V systems, ensure the battery bank is balanced so that any single string does not become a bottleneck. If you notice voltage drops, inspect connections and cable runs for damage. Regular maintenance helps sustain performance and extend the life of the system.
Costs, incentives, and practical planning
Costs for a solar panel 24 volt setup vary with region, brand, and system size. You may consider the overall project cost rather than panel price alone, including controllers, wiring, mounting hardware, and installation. Look for manufacturer warranties and any local incentives such as rebates or financing options. A careful estimate should include future maintenance and battery replacements. The decision to go 24V is often driven by distance to the battery bank, the loads you intend to support, and the ability to run larger appliances with efficient wiring. This section helps you translate the technical specs into a practical home project plan.
Frequently Asked Questions
What is a solar panel 24 volt and how does it differ from a 12 volt system?
A 24V solar panel system uses higher voltage to reduce current for the same power, which lowers wiring losses and allows longer cable runs. It pairs with a 24V battery bank and an MPPT controller. A 12V system uses lower voltage with higher current and smaller battery banks.
A 24V system uses higher voltage to reduce current and wiring losses, pairing with a 24V battery and MPPT controller.
Can I mix 24 volt panels with a 12 volt battery bank?
It is not recommended to mix 24V panels with a 12V battery bank because the system voltage must be matched across panels, controller, and batteries. You would need step-up/down equipment or reconfigure to a consistent voltage.
24V panels work best with 24V or higher battery banks and a matching controller.
What size battery bank do I need for a 24V system?
The required battery bank size depends on your daily energy use, loads, and autonomy. Use a load calculation to estimate amp-hours at 24V and choose a bank with sufficient capacity and suitable chemistry.
Size your battery bank by your daily energy needs, aiming for enough capacity at 24V.
Do 24V panels require a dedicated MPPT controller?
MPPT controllers are strongly recommended for 24V systems because they optimize voltage, improve charging efficiency, and help match panel voltage to battery voltage.
MPPT controllers are highly recommended for 24V setups to maximize energy harvest.
Are 24 volt solar panels common for home installations?
24V panels are less common than 12V modules for typical home kits, but they are widely used in off grid, RV, and larger hybrid installations. Availability varies by region and supplier.
24V panels are common in off grid and RV setups, but less so for typical home kits.
What maintenance does a 24V system require?
Maintenance is similar to other DC solar systems: keep panels clean, inspect wiring and connectors, check battery health, and monitor charge controller performance. Regular checks help catch problems early.
Keep panels clean, inspect wiring, and monitor your battery health and controller.
Top Takeaways
- Understand why 24V systems can reduce conductor losses
- Learn how to match panels with a 24V battery bank
- Plan wiring, fusing, and safety for a 24V setup
- Know where 24V is most effective for homes
- Consider MPPT controllers for best performance
