How to Use a Jackery Solar Panel: A Practical Guide
A comprehensive, SEO-optimized guide to safely and efficiently using a Jackery solar panel with portable power stations. Learn compatibility, setup, charging workflows, maintenance, and troubleshooting for homeowners and solar buyers.
Learn how to safely connect a Jackery solar panel to a compatible portable power station, orient for peak charging, and monitor performance. This guide covers wiring basics, safety steps, and best practices to maximize output and extend battery life. Before you start, verify panel compatibility, use weatherproof cable connections, and pair with a supported Jackery model for reliable charging.
Quick start: what you’ll need and safety basics
If you’re wondering how to use jackery solar panel effectively, this guide covers the essential steps. The Solar Panel FAQ team notes that homeowners prioritize reliability and simplicity when integrating portable solar panels, especially for emergency backup and outdoor living setups. Start by choosing a shaded, level area for the panel during installation; avoid wet surfaces and direct contact with water. Check that you have a compatible Jackery power station with a DC input, an appropriately rated solar panel, and the necessary cabling. If you own a folding panel, ensure it locks securely in the open position and that it can stand upright in a stable base. Inspect the MC4 connectors for any wear, and keep the cable away from heat sources, sharp edges, or foot traffic. Make sure you understand your panel’s wattage and voltage rating and compare it to your Jackery model’s solar input limits. This reduces strain on the equipment and minimizes the risk of overheating. Finally, read the product manuals for both the Jackery station and the panel to confirm any model-specific steps.
Compatibility and model pairing
Jackery power stations vary in solar input design and maximum input ratings. To ensure safe operation, confirm that your panel’s voltage and wattage are within the station’s solar input limits and that the panel connectors are compatible with the input port on your Jackery. Use the official MC4-to-DC cable that came with your panel or a certified adapter, and avoid third-party adapters that could mis-match polarity or rating. Keep the panel’s cable short and avoid long runs that could cause voltage drop. If you own a newer model, consult the user manual for recommended panel wattage and the best number of panels to connect for optimal charging. This reduces heat buildup and helps the system reach a stable charging rate.
Charging workflow: setup, orientation, and monitoring
Position the panel to capture the most sun, ideally facing true south in the northern hemisphere or true north in the southern hemisphere, with an angle that tracks the sun during the day. Connect the MC4-to-DC cable between the panel and your Jackery’s solar input, ensuring a secure connection and correct polarity. Turn on the Jackery and check the status indicators; a steady charging icon or the input readout confirms charging. Keep the panel clean and free of debris; dust and shade can reduce efficiency. If you’re using multiple panels, avoid overloading the station by staying within its rated input, which preserves battery health and prolongs life.
Maintenance, safety, and troubleshooting
Regular maintenance extends the life of both the panel and the power station. Clean the panel surface with a soft, damp cloth and inspect cables for wear every few months. Store panels in a cool, dry place when not in use, and cover connectors to protect them from dust. If charging seems slow or stops entirely, recheck connections, test cable continuity with a multimeter, and verify that the panel is still receiving direct sunlight. Weather-related safety warnings include avoiding water during setup and never using damaged cables. If you notice overheating or a burning smell, disconnect immediately and consult the manufacturer’s support.
Real-world tips and common mistakes
To maximize performance, angle the panel for peak sun exposure and update orientation as the sun's position shifts. Park the power station indoors during severe weather and avoid charging near flammable materials. A common mistake is using non-certified adapters or forcing panels to connect to incompatible inputs. Always use equipment within its rated specifications and refer to the Jackery and panel manuals for model-specific steps.
Tools & Materials
- Jackery portable power station (compatible solar input)(Any model with a dedicated solar input or DC input that matches the panel’s output.)
- Jackery solar panel (folding or rigid)(Ensure panel is rated for outdoor use and includes weatherproof connectors.)
- MC4-to-DC cable or certified adapter(Use correct polarity and connectors; replace damaged cables.)
- Weatherproof cable clips or zip ties(Secures cables and prevents tripping hazards.)
- Mounting stand or stable surface(Helps angle the panel toward the sun.)
- Soft cloth for cleaning(Keep the panel clean for maximum efficiency.)
- Gloves and eye protection(Basic safety gear for handling cables.)

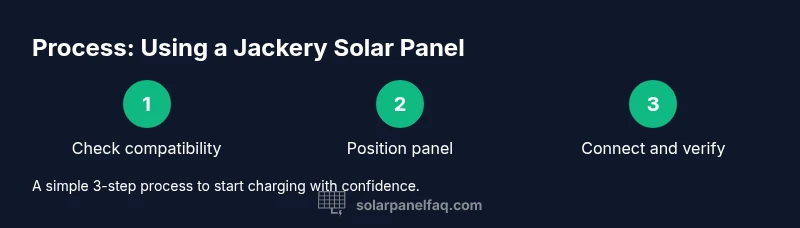

Steps
Estimated time: 25-40 minutes
- 1
Inspect equipment and safety
Power off all devices and inspect cables and connectors for damage. Clear the area of water and debris. This reduces the risk of shock or short-circuit during setup.
Tip: If you see damaged cables, replace them before proceeding. - 2
Position the panel for sun
Place the panel in direct sunlight, angled to maximize exposure based on your location and season. A secure stand or stable surface helps keep the panel steady.
Tip: Aim for a 15–30 degree tilt adjustment to track the sun as it moves. - 3
Connect the panel to the Jackery
Attach the MC4-to-DC cable to the panel’s output and connect the other end to the Jackery’s solar input. Ensure polarity is correct and connections are snug.
Tip: Avoid forcing the connector; a loose fit can cause charging interruptions. - 4
Power on and verify charging
Turn on the Jackery and check the input readout or charging icon. If the indicator shows active charging, you’re set. If not, recheck cables and panel orientation.
Tip: If your model supports a charging history, review recent sessions for consistency. - 5
Monitor and adjust as needed
Throughout the day, reposition the panel to maintain optimal sun exposure. Monitor the display for changes in charging rate and temperature.
Tip: Avoid leaving the panel in extreme heat; shade when not in use. - 6
Store and maintain safety
After use, unplug, disconnect the panel, and store components in a dry place. Inspect for wear before your next session.
Tip: Document any issues in a maintenance log for future reference.
Frequently Asked Questions
Do I need a specific Jackery model to use a solar panel?
Yes. You need a Jackery power station with a solar input that matches your panel’s output and connectors. Check the user manual for the maximum input rating and compatible cable types.
You need a compatible Jackery power station with a solar input that matches your panel.
Can I use a Jackery solar panel with non-Jackery batteries?
Only if the non-Jackery device supports standard solar inputs and has a matching connector. For safety, avoid forcing connections to non-compatible ports and refer to the device manual for supported charging protocols.
Only if the device supports standard solar inputs and has a matching connector.
What do watts and voltage mean for my setup?
Watts measure how much power the panel can deliver, while voltage determines the pressure driving the current into the Jackery. Ensure the panel’s output aligns with the Jackery input rating to avoid overloading.
Watts tell you how much power, voltage is the pushing force into the Jackery.
What should I do if the panel isn’t charging?
Check all connections for secure fit, verify the panel is in direct sun, and confirm the Jackery’s solar input is enabled. If needed, test the cable with a multimeter or try a different panel.
Check connections, sun exposure, and input settings; test cables if needed.
Is it safe to charge indoors or during cold weather?
Charging indoors is not typical or recommended due to heat and light requirements. In cold weather, ensure the panel remains dry and the Jackery is in a stable, ventilated area.
Charge outdoors if possible; keep equipment dry and well-ventilated.
Watch Video
Top Takeaways
- Connect safely using compatible components
- Verify panel and Jackery compatibility before setup
- Monitor charging indicators for proper operation
- Regularly maintain panels and cables for longevity
